ROHX10T3M08-A57 WKK25G
ROHX10T3M08-A57 WKK25G
Артикул:
8284904
В наличии
Характеристики

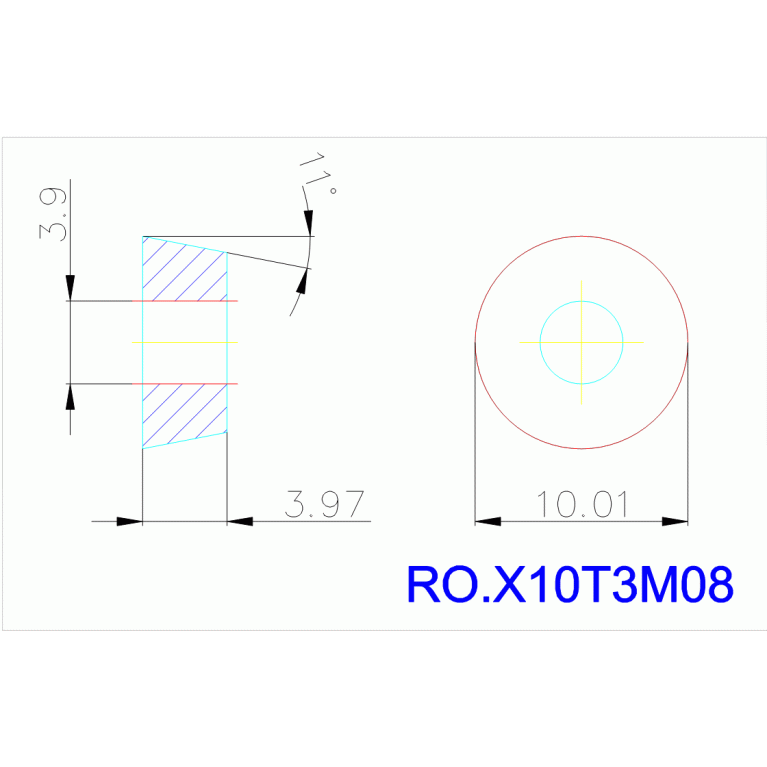

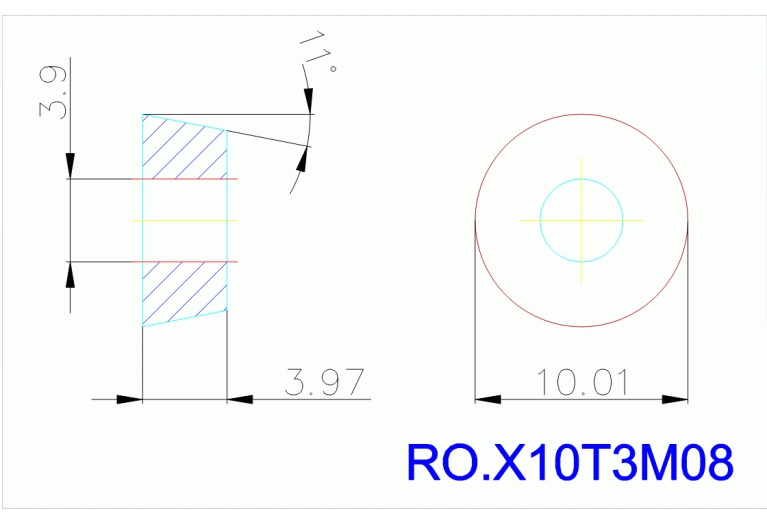

AN Clearance angle major
11 Degree
CBMD Chip breaker manufacturers designation
A57
CECC Cutting edge condition code
S - Chamfered and rounded
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.9 mm
Delivery state valid from
12/1/2023
DIN
W-RO10T3M03NB$8M0
FamilyProducts
Positive round ROHX
GRDMFG Grade manufacturers designation
WKK25G
IC Inscribed circle diameter
10 mm
ID Technical product number
8284904
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$RO10T3M03NB$8M0
ISYC Subclass
201-10 - Round insert
LOC-03 ISO
WR$$RO10T3M03NB$8M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-RO10T3M03NB$8M0
M M-dimension
10 mm
Name Identifying order number
ROHX10T3M08-A57 WKK25G
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
STDDES Standard designation
ROHX10T3M08
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
H
Working process
FPL - Face milling
WT Weight of item
0.003 kg
