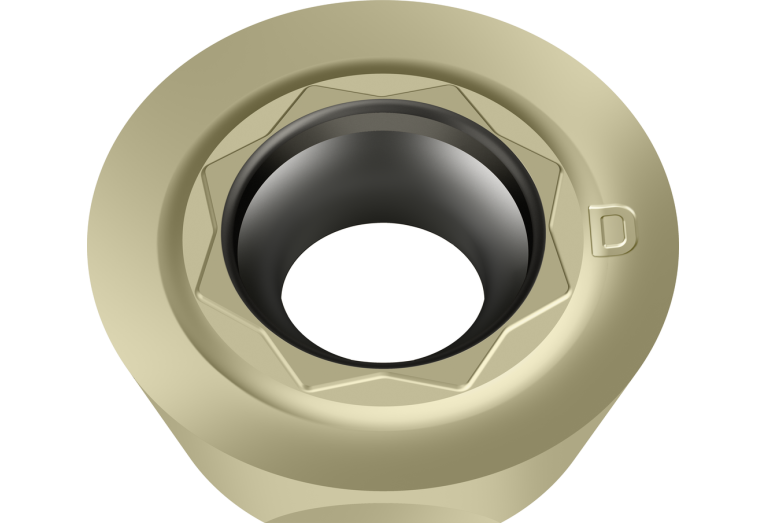

ROHX10T3M0-D67 WSM35G

Артикул: 8441391

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

D67

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiAlN+Al2O3+(ZrN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

W-RO10T3M03NB$$M0

FamilyProducts

Positive round ROHX

GRDMFG Grade manufacturers designation

WSM35G

IC Inscribed circle diameter

10 mm

ID Technical product number

8441391

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$RO10T3M03NB$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

WR$$RO10T3M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-RO10T3M03NB$$M0

M M-dimension

10 mm

Name Identifying order number

ROHX10T3M0-D67 WSM35G

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

ROHX10T3M0

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.002 kg
