Главная Каталог продукции Toolunited 12 201-10 - Round insert RNGN 120700T IS35

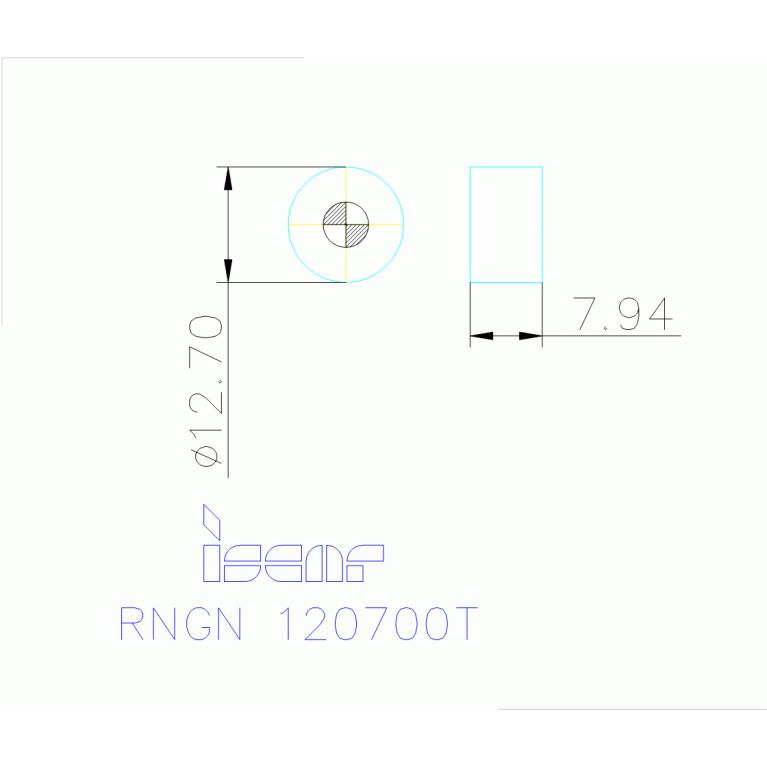

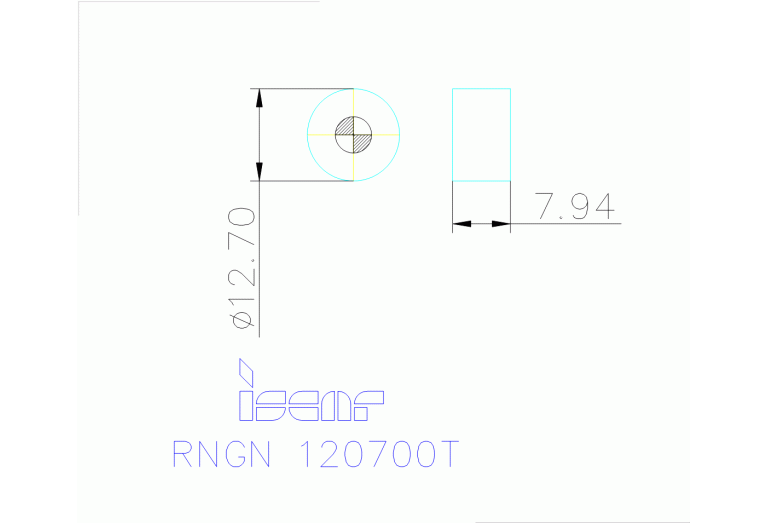

RNGN 120700T IS35

Артикул: 6158924

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

RN1207001N

FamilyProducts

Double-Sided Round Ceramic Inserts for Machining Cast Iron, Nickel Based Alloys and Hardened Steel

GRDMFG Grade manufacturers designation

IS35

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6158924

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RN1207001NA$$00

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RN1207001NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN1207001N

M M-dimension

12.7 mm

Name Identifying order number

RNGN 120700T IS35

S Insert thickness

7.94 mm

Working process

No working processes available
