Главная Каталог продукции Toolunited 12 201-10 - Round insert RCMT0602M0 MC6115

RCMT0602M0 MC6115

Артикул: 23023055

В наличии

В корзину

Описание

Характеристики

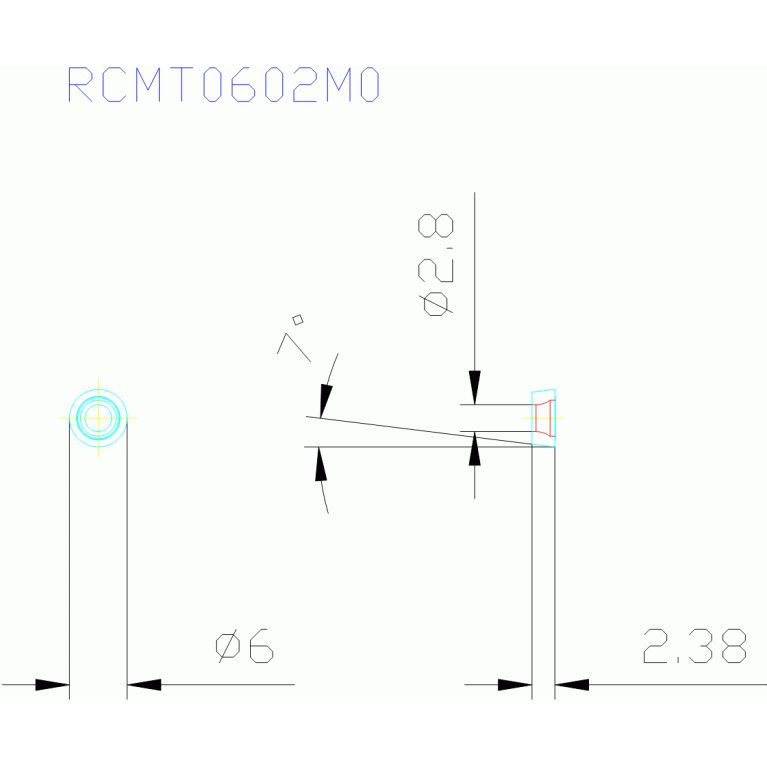

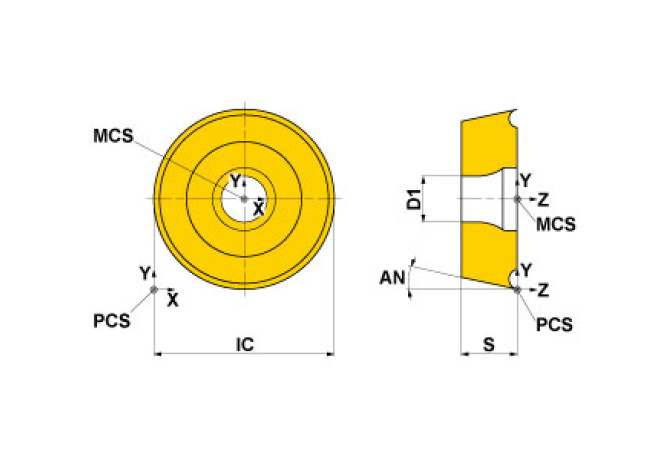

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

E - Rounded

COATN Coating

Accumulated TiCN-Al2

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

5/21/2023

FamilyProducts

Turning insert (Positive)

GRDMFG Grade manufacturers designation

MC6115

IC Inscribed circle diameter

6 mm

ID Technical product number

23023055

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

MI$$RC0602M03NB$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

MI$$RC0602M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

RCMT0602M0 MC6115

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

RCMT0602M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
