Главная Каталог продукции Toolunited 12 201-10 - Round insert RCMT 2006M0-14 IC5010

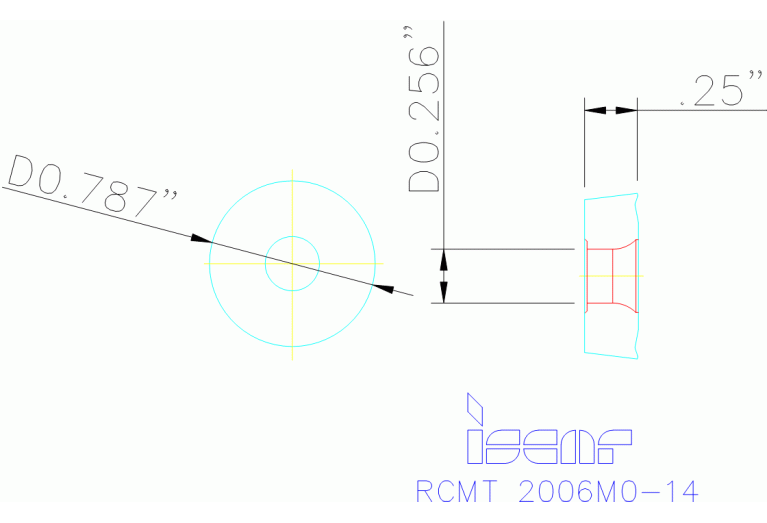

RCMT 2006M0-14 IC5010

Артикул: 5550395

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BN Face land width

0.25 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

6.5 mm

Delivery state valid from

4/1/2022

DIN

RC2006MO3N

FamilyProducts

Round Inserts with a 7° Positive Flank for Medium and Finish Profiling on a Wide Range of Materials

GB Face land angle

15 Degree

GRDMFG Grade manufacturers designation

IC5010

IC Inscribed circle diameter

20 mm

ID Technical product number

5550395

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC2006MO3NB$$MO

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC2006MO3NB$$MO

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC2006MO3N

M M-dimension

20 mm

Name Identifying order number

RCMT 2006M0-14 IC5010

S Insert thickness

6.35 mm

Working process

No working processes available

WT Weight of item

0.02 kg
