Главная Каталог продукции Toolunited 12 201-10 - Round insert RCGX060600T01020 WIS30

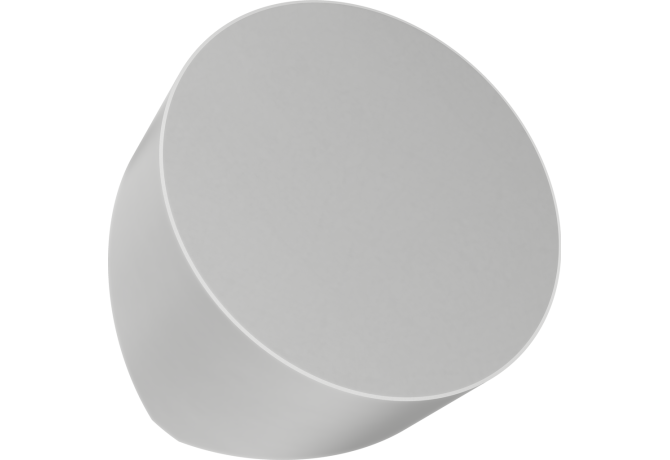

RCGX060600T01020 WIS30

Артикул: 8377371

В наличии

В корзину

Описание

Характеристики

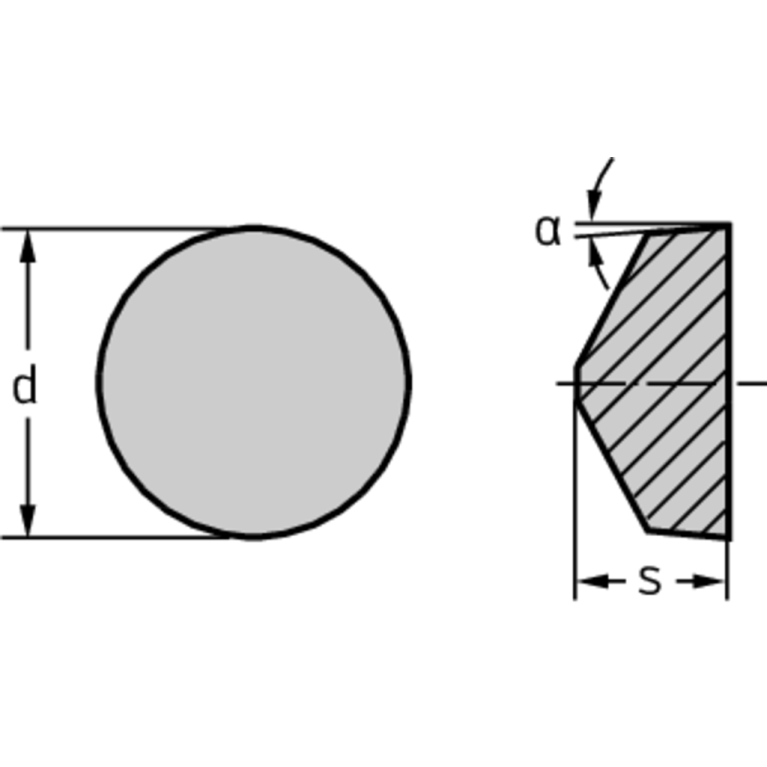

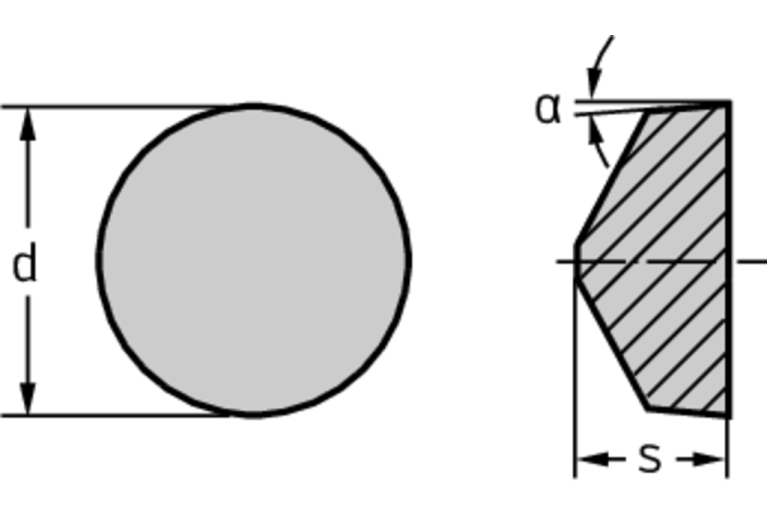

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

T0102

CECC Cutting edge condition code

T - Chamfered

COATN Coating

SiALON-Keramik

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

12/1/2023

DIN

RC0606006N

FamilyProducts

Ceramic – Positive round RCGX

GRDMFG Grade manufacturers designation

WIS30

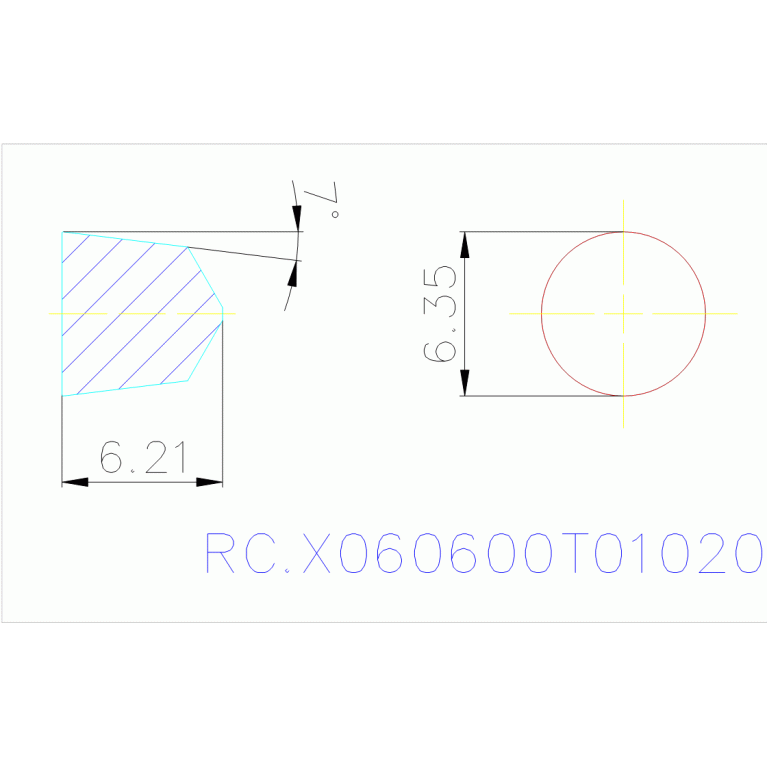

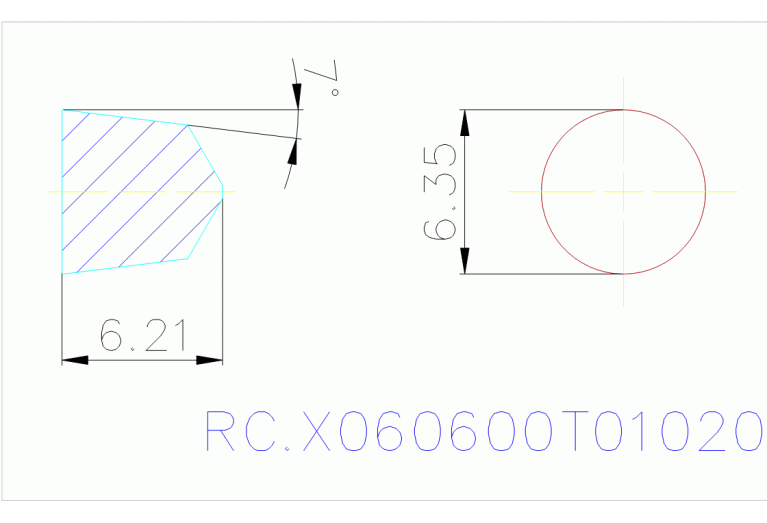

IC Inscribed circle diameter

6.35 mm

ID Technical product number

8377371

IFS Insert mounting style code

6 - Prismatic clamping, convex

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC0606006NA$$00

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC0606006NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0606006N

M M-dimension

6.35 mm

MIID Master insert identification

RCGX060600 WIS30

Name Identifying order number

RCGX060600T01020 WIS30

NameAnsi Identifying order number inch alternative

RCGX24T0102 WIS30

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

RCGX060600

STDDESAnsi Standard designation ANSI

RCGX240

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
