Главная Каталог продукции Toolunited 12 201-10 - Round insert RCGX 120400T IB90

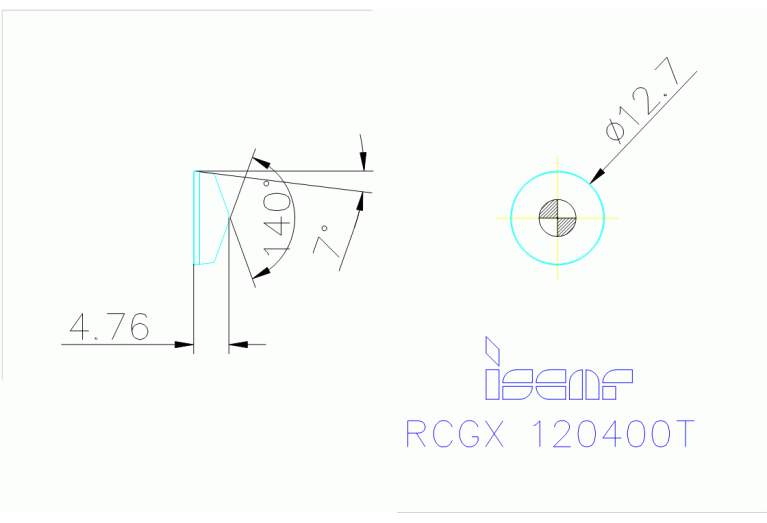

RCGX 120400T IB90

Артикул: 5700440

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

RC1204003N

FamilyProducts

CBN Round Inserts with a Flat Rake for Machining Cast Iron and Hardened Steel

GRDMFG Grade manufacturers designation

IB90

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5700440

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC1204003NA$$00

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC1204003NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204003N

M M-dimension

12.7 mm

Name Identifying order number

RCGX 120400T IB90

S Insert thickness

4.76 mm

TCE Tipped cutting edge code

Working process

No working processes available

WT Weight of item

0.01 kg
