Главная Каталог продукции Toolunited 12 201-10 - Round insert RCGX 090700E IS35

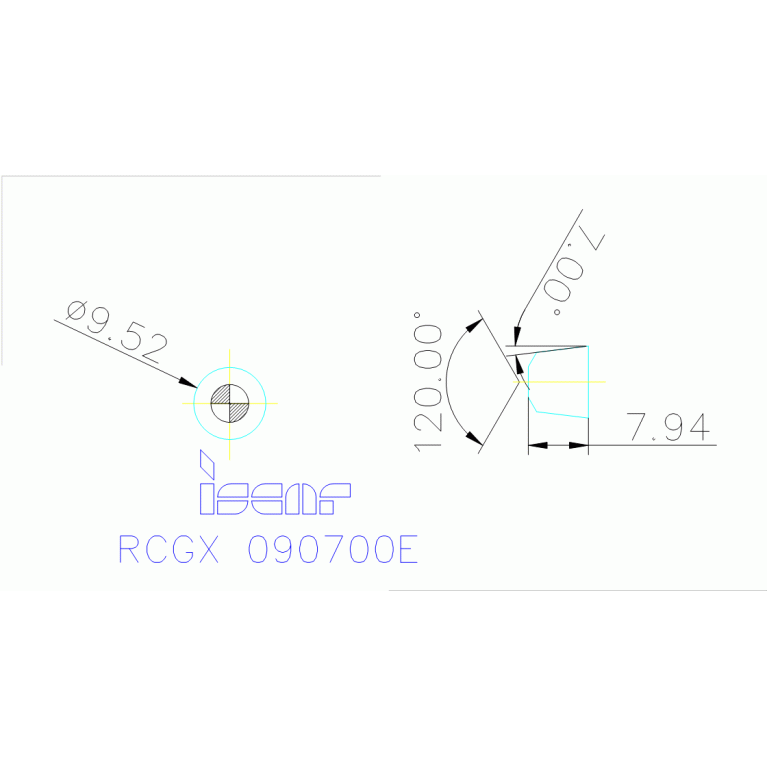

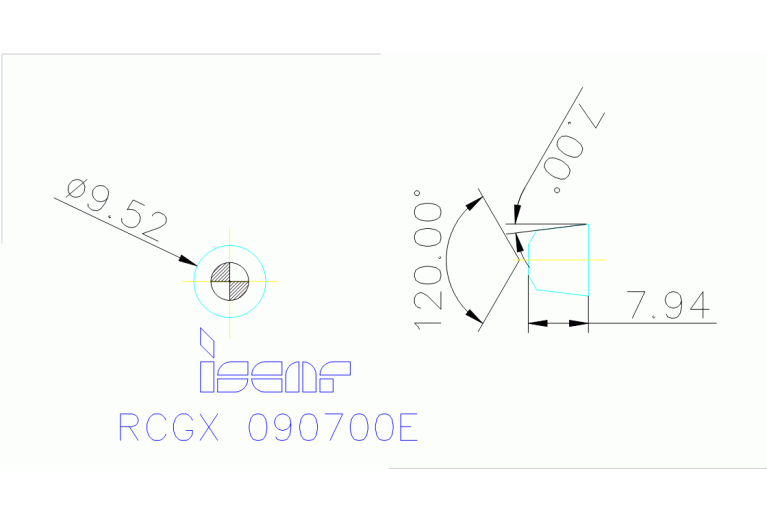

RCGX 090700E IS35

Артикул: 6182034

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BN Face land width

0.2 mm

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

RC0907003N

FamilyProducts

Round Ceramic Inserts for Machining Nickel Based Alloys and Hardened Steel

GB Face land angle

25 Degree

GRDMFG Grade manufacturers designation

IS35

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6182034

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC0907003NA$$00

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC0907003NA$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0907003N

M M-dimension

9.52 mm

Name Identifying order number

RCGX 090700E IS35

S Insert thickness

7.94 mm

Working process

No working processes available
