Главная Каталог продукции Toolunited 12 201-10 - Round insert RCGT0803M0-MF2 883

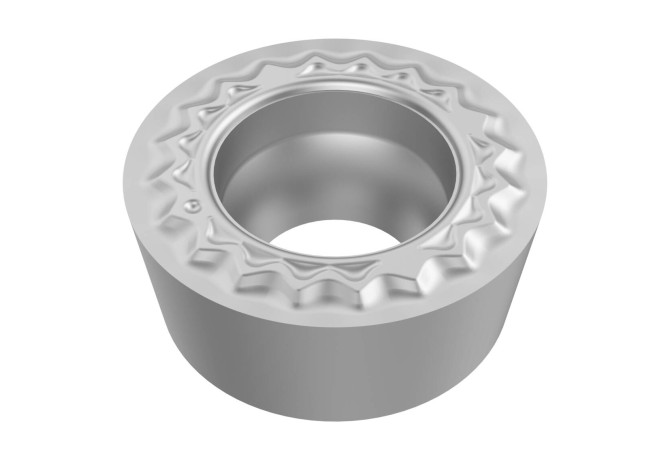

RCGT0803M0-MF2 883

Артикул: 10083777

В наличии

В корзину

Описание

Характеристики

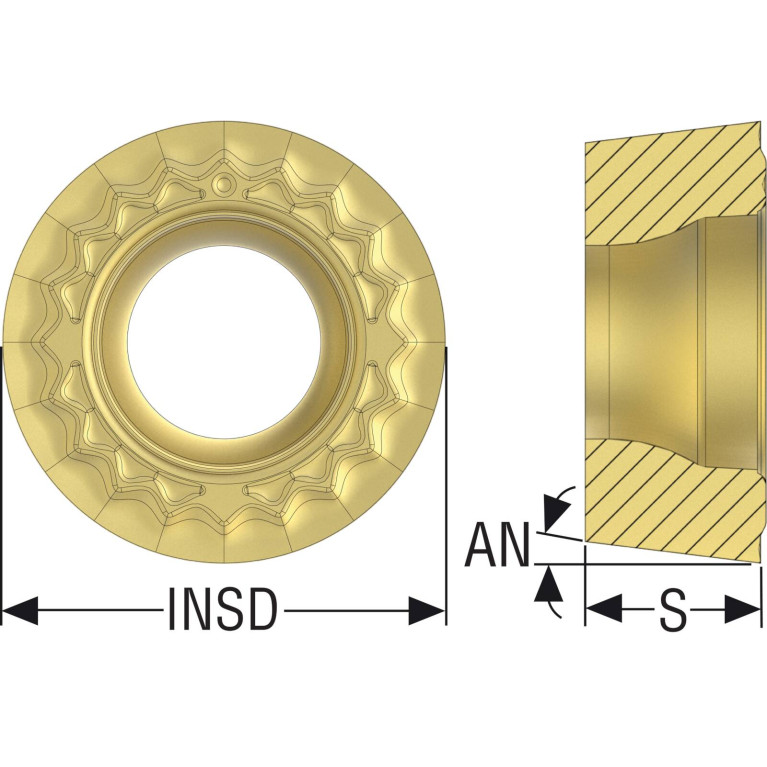

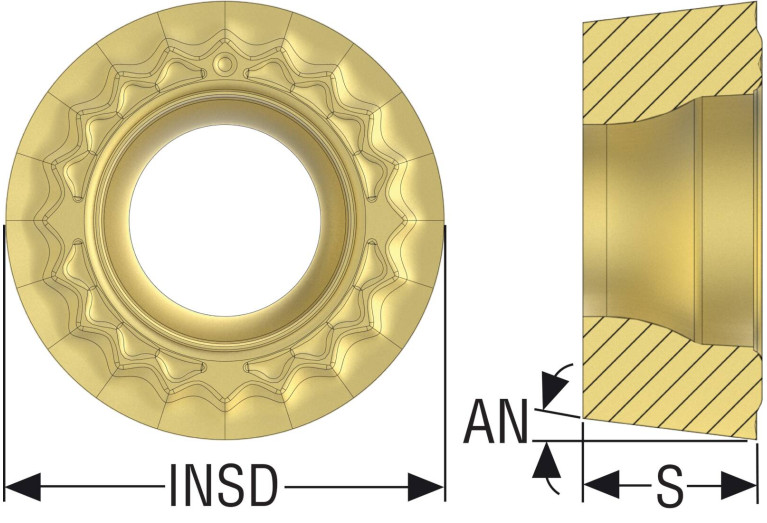

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SO - SECO Tools

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.5 mm

Delivery state valid from

12/1/2023

DIN

SO-RC0803 3N

FamilyProducts

RCGT0803M0-MF2 883

GRDMFG Grade manufacturers designation

883

IC Inscribed circle diameter

8 mm

ID Technical product number

10083777

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO-RC0803 3N

M M-dimension

8 mm

MIID Master insert identification

RCGT0803M0 883

Name Identifying order number

RCGT0803M0-MF2 883

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCGT0803M0

TCINS Tolerance class insert

Working process

No working processes available
