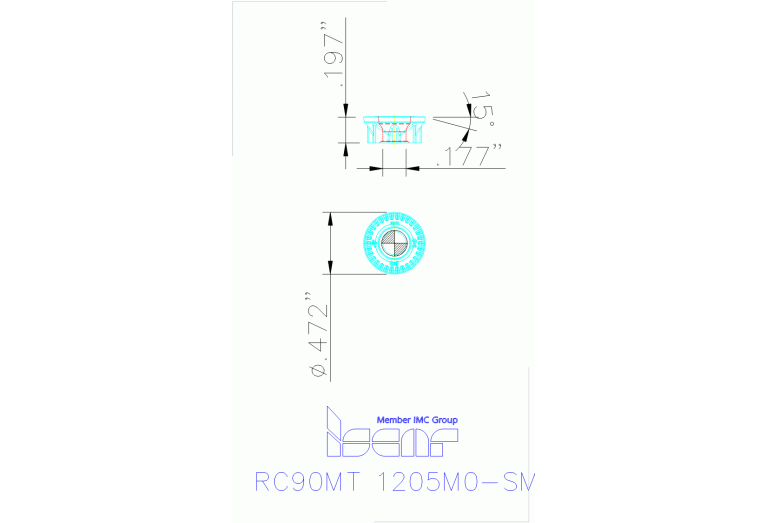

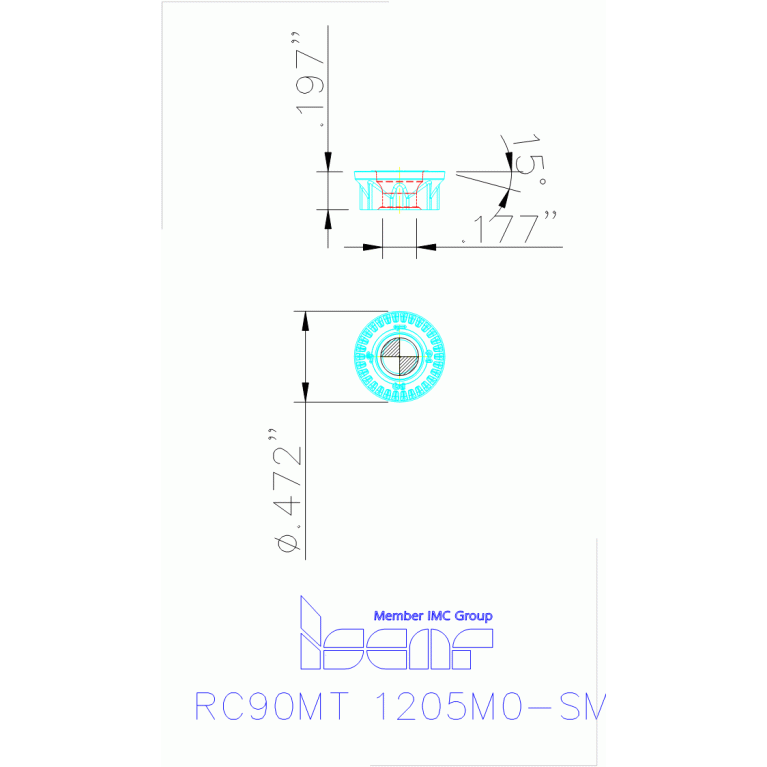

RC90MT 1205M0-SM IC8250

Артикул: 5550389

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

4.5 mm

Delivery state valid from

4/1/2022

DIN

RCT12M00NB

FamilyProducts

Single-Sided Round Inserts for Semi-Roughing and Roughing Applications (CHAMELEON Multifunction Pocket System)

GB Face land angle

15 Degree

GRDMFG Grade manufacturers designation

IC8250

IC Inscribed circle diameter

12 mm

ID Technical product number

5550389

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RCT12MO3NB$$MO

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RCT12MO3NB$$MO

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RCT12M00NB

M M-dimension

12 mm

Name Identifying order number

RC90MT 1205M0-SM IC8250

S Insert thickness

5 mm

Working process

No working processes available
