5115602502
5115602502
Артикул:
5115602502
В наличии
Характеристики
AN Clearance angle major
11 Degree
CBMD Chip breaker manufacturers designation
-F10
CECC Cutting edge condition code
E - Rounded
COATN Coating
CTPX715
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
10/1/2022
FamilyProducts
HM-FRÄSWENDEPLATTE
GRD2ND Standard designation of the grade 2nd application
HC-M15
GRD3RD Standard designation of the grade 3rd application
HC-N10
GRDPRIO Standard designation of the grade main application
HC-P15

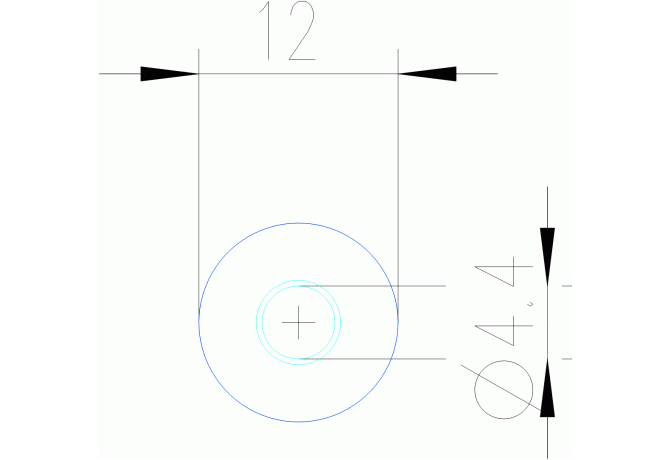

IC Inscribed circle diameter
12 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
0
ISYC Subclass
201-10 - Round insert
M M-dimension
12 mm
Name Identifying order number
5115602502
S Insert thickness
4.76 mm
TCINS Tolerance class insert
H
Working process
No working processes available
