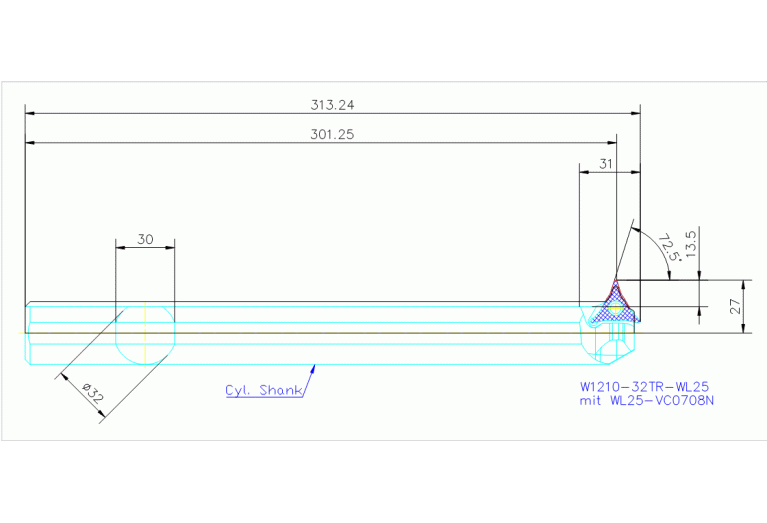

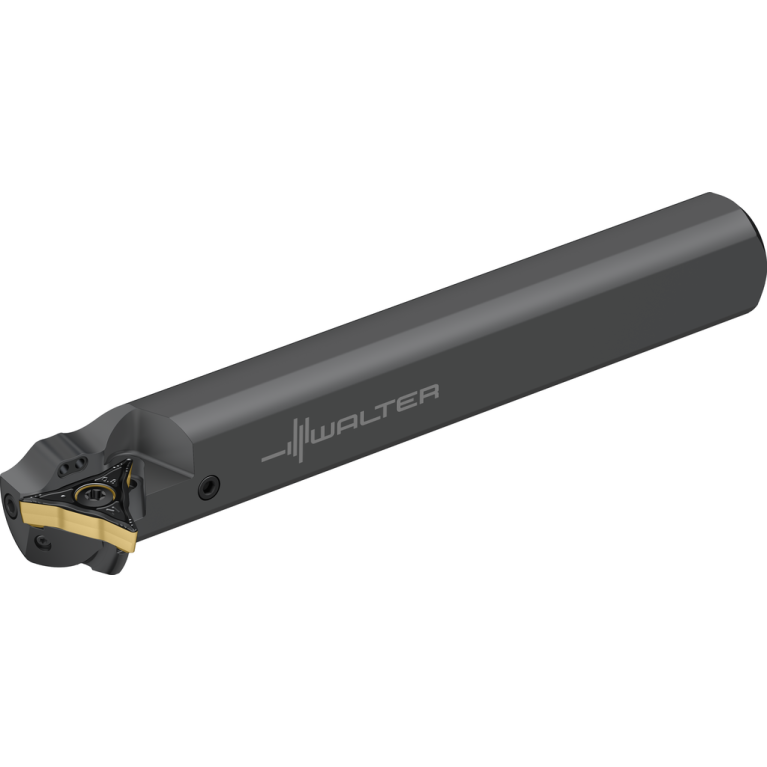

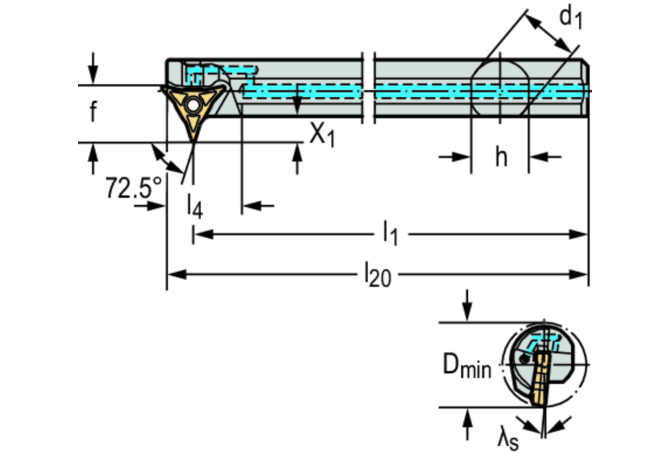

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning W1210-32TR-WL25

W1210-32TR-WL25

Артикул: 8138212

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL03202215

DIN CSW1

W-WL2504**3******

DMIN Minimum bore diameter

44 mm

EPSR Insert included angle

35 Degree

FamilyProducts

Boring bar – Copy turning system W1210

GAMO Rake angle orthogonal

-1.5 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

8138212

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22G3200$$$$

ISO CSW1

WR$$WL2504**3******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

72.5 Degree

L Cutting edge length

25 mm

LAMS Inclination angle

-4.8 Degree

LF Functional length

300 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

30 mm

LOC-03 ISO

ZYL22G3200$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202215

LPR Protruding length

310 mm

MIID Master insert identification

WL25-VC0708N-MM4

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

W1210-32TR-WL25

OAL Overall length

310 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

27 mm

Working process

DDI - Internal turning,DFI - Internal form turning

WT Weight of item

1.65 kg
