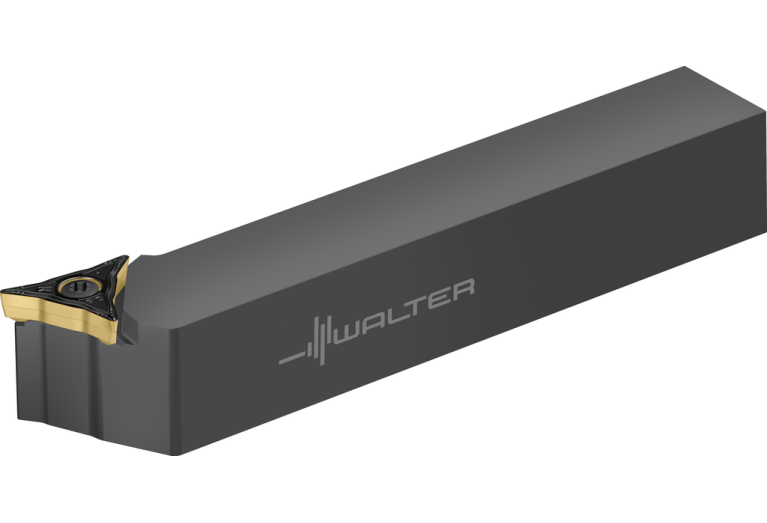

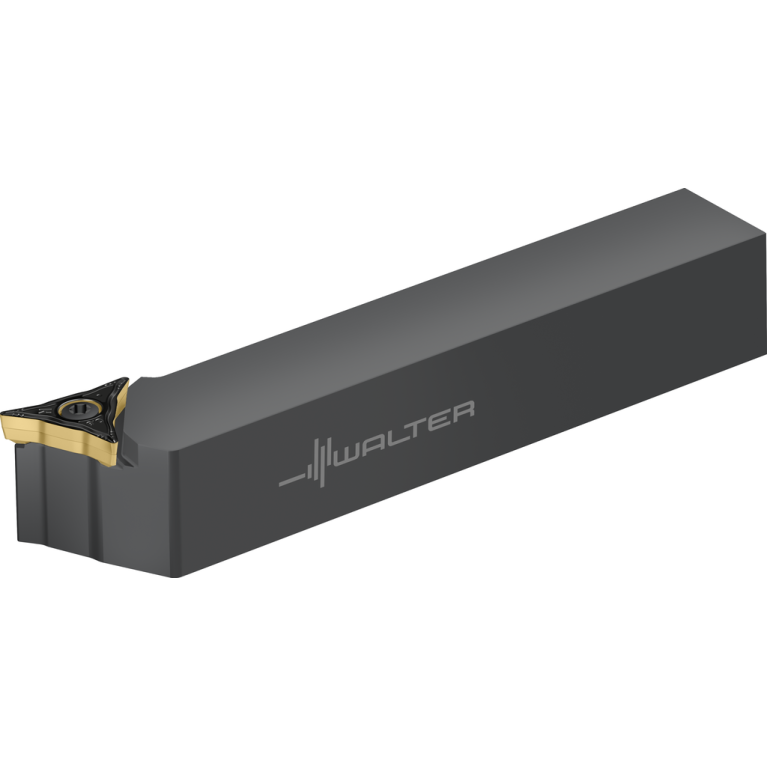

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning W1011-2525L-WL25

W1011-2525L-WL25

Артикул: 8026809

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT25250105

DIN CSW1

W-WL2504**3******

EPSR Insert included angle

35 Degree

FamilyProducts

Shank tool – Copy turning system W1011

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

8026809

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A2525$$$$

ISO CSW1

WR$$WL2504**3******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

127.5 Degree

L Cutting edge length

25 mm

LAMS Inclination angle

0 Degree

LF Functional length

150 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

2525

LOC-03 H Shank height

25 mm

LOC-03 ISO

VKT01A2525$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

LPR Protruding length

150 mm

MIID Master insert identification

WL25-VC0708N-MM4

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

W1011-2525L-WL25

OAL Overall length

150 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

32 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.69 kg
