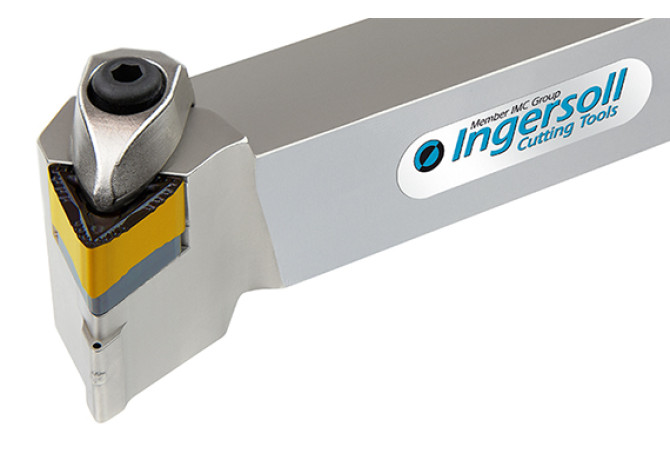

TTQNR 3232 P2109-TB

TTQNR 3232 P2109-TB TTQNR 3232 P2109-TB TTQNR 3232 P2109-TB

TTQNR 3232 P2109-TB

Ingersoll
Артикул: 6234287
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.5 mm
BLDA Tool style code Position A
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
VKT32320115
DIN CSW1
TN2109 7N
EPSR Insert included angle
60 Degree
FamilyProducts
TTQNR/L-TB
HAND Cutting direction
R - Right
ID Technical product number
6234287
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
170 mm
LH Head length
32 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
3232
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320115
MIID Master insert identification
TNMV210908
MTP Clamping type code
X - Special mounting type
Name Identifying order number
TTQNR 3232 P2109-TB
OAL Overall length
170 mm
STDDES Standard designation
TTQNR 3232 P2109-TB
SX Shank cross section shape code
01 - Square shank
WF Functional width
40 mm
Working process
DDA - External turning
