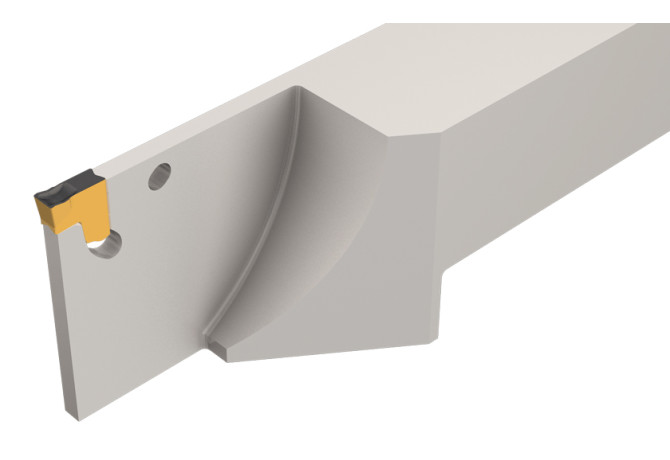

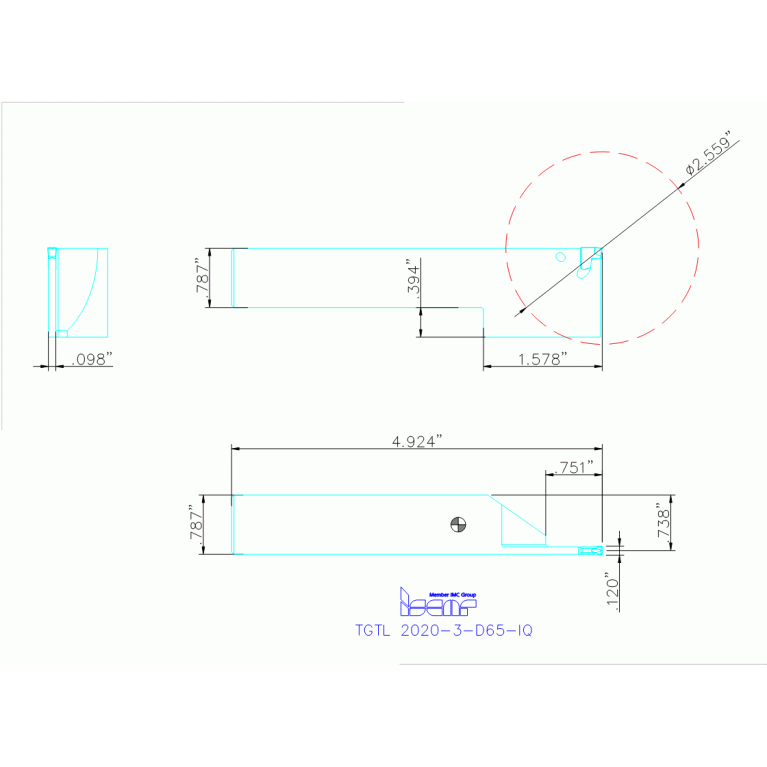

TGTL 2020-3-D65-IQ

Артикул: 2302448

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-623665727057268

FamilyProducts

Integral Shank TANG-GRIP Toolholders with Reinforced Blades for Parting and Grooving Mainly Sub-Spindle Machines

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

2302448

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$623665727057268

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

TGTL 2020-3-D65-IQ

OAL Overall length

125 mm

WF Functional width

18.8 mm

Working process

No working processes available

WT Weight of item

0.33 kg
