Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning TGTL 1616-2-D52-IQ

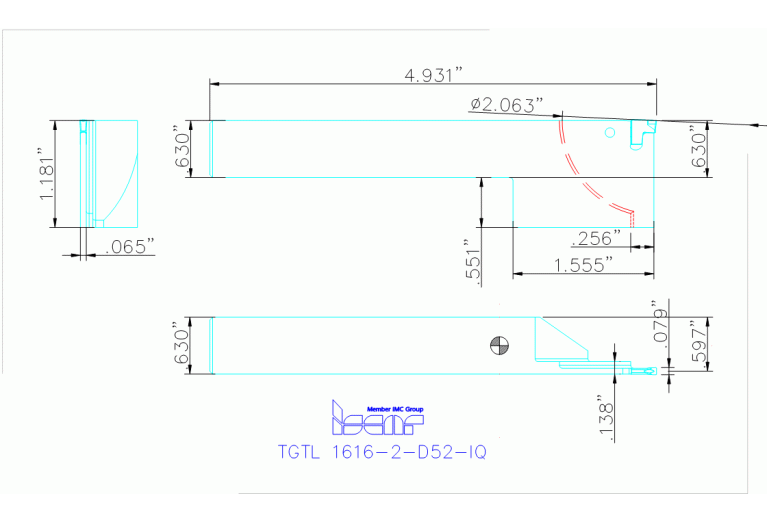

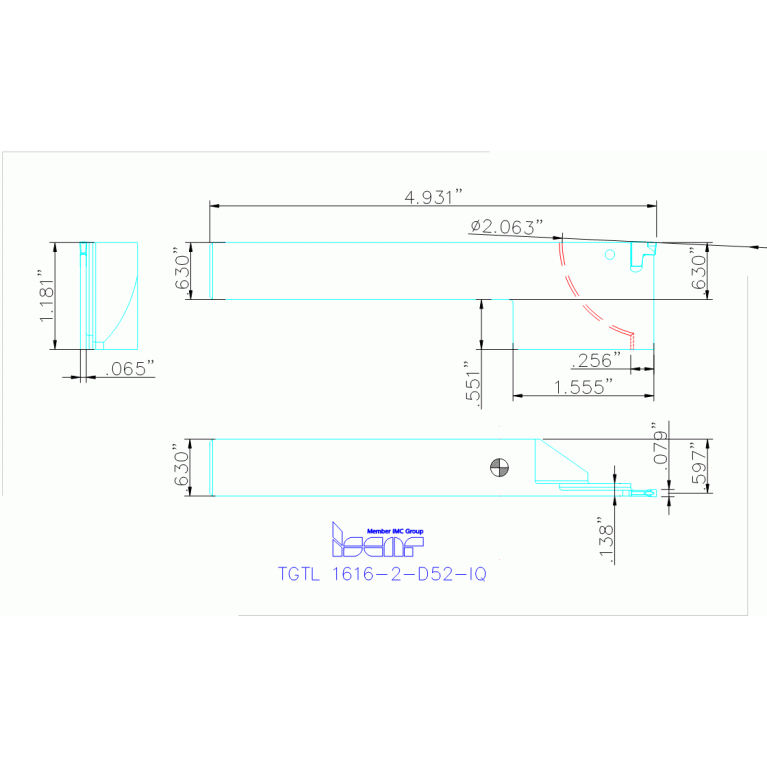

TGTL 1616-2-D52-IQ

Артикул: 2302442

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-432698562594980

FamilyProducts

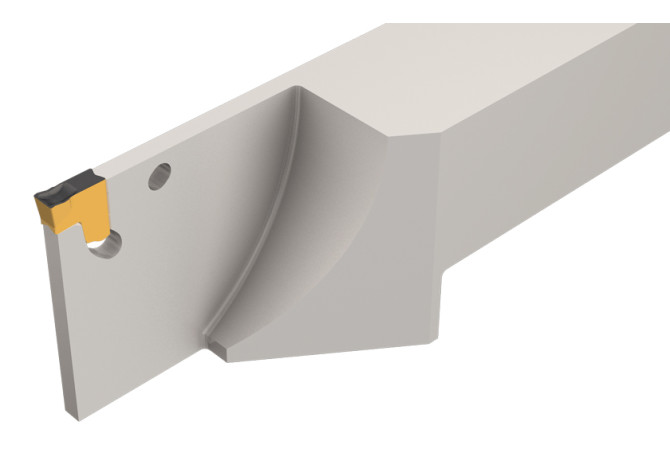

Integral Shank TANG-GRIP Toolholders with Reinforced Blades for Parting and Grooving Mainly Sub-Spindle Machines

HAND Cutting direction

L - Left

HF Functional height

16 mm

ID Technical product number

2302442

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$432698562594980

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

TGTL 1616-2-D52-IQ

OAL Overall length

125 mm

WF Functional width

15.2 mm

Working process

No working processes available

WT Weight of item

0.22 kg
