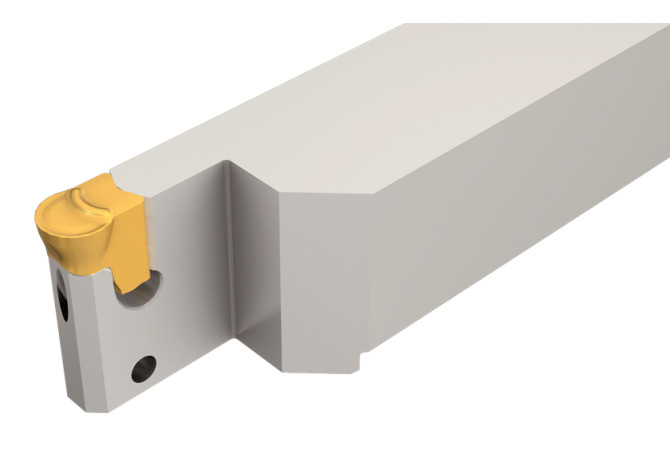

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning TGBHR 25C-14T20

TGBHR 25C-14T20

Артикул: 2801945

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-78503180248692

FamilyProducts

Toolholders for Heavy Duty Groove-Turn and Parting Applications

HAND Cutting direction

R - Right

HF Functional height

25 mm

ID Technical product number

2801945

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$78503180248692

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

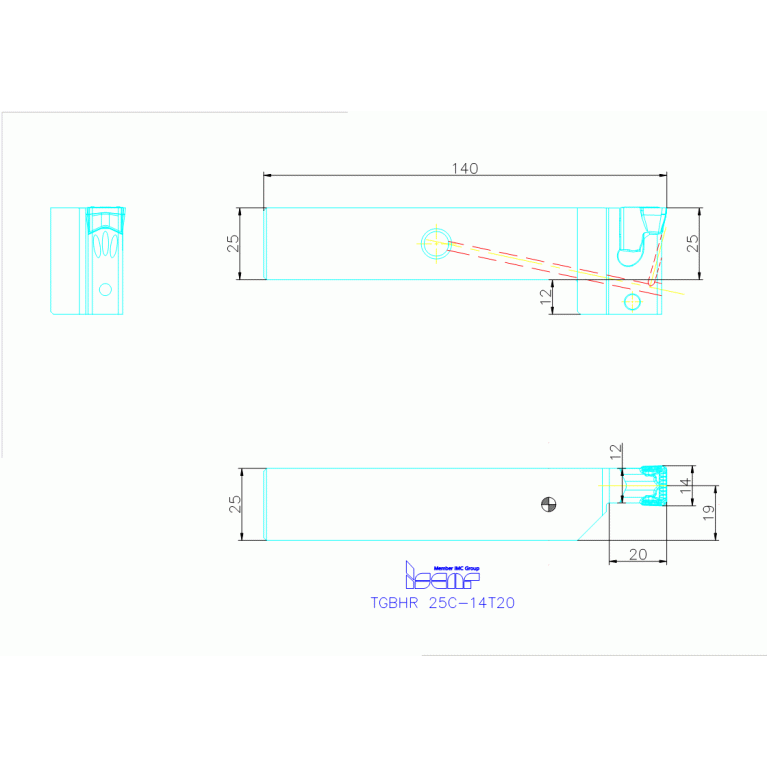

TGBHR 25C-14T20

OAL Overall length

140 mm

WF Functional width

19 mm

Working process

No working processes available

WT Weight of item

0.61 kg
