Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning SWEPL 0810-04

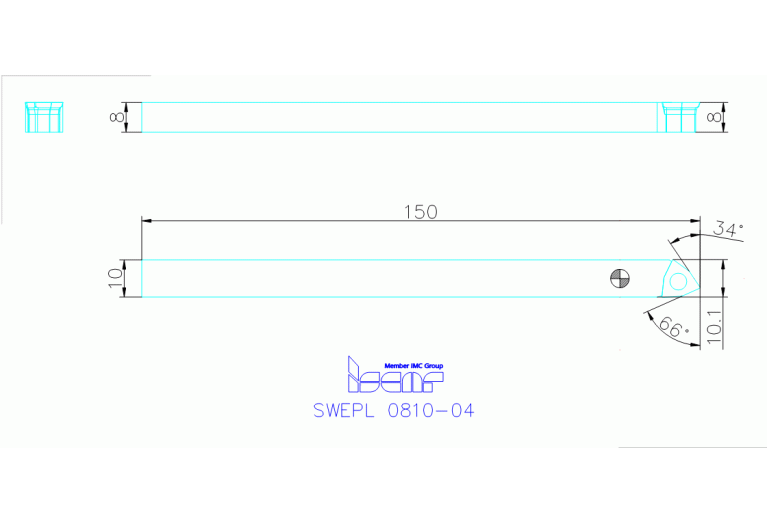

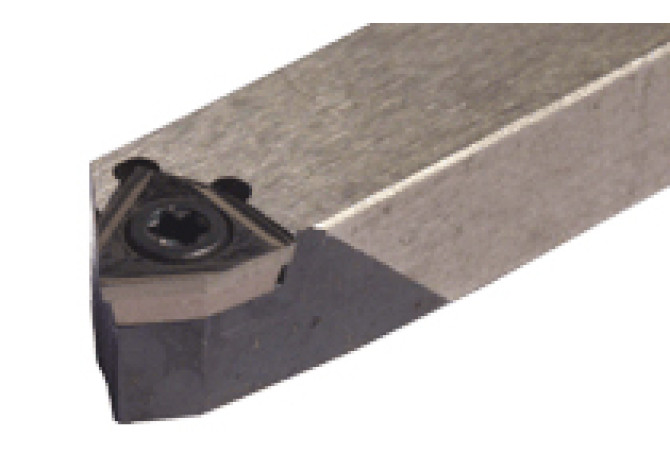

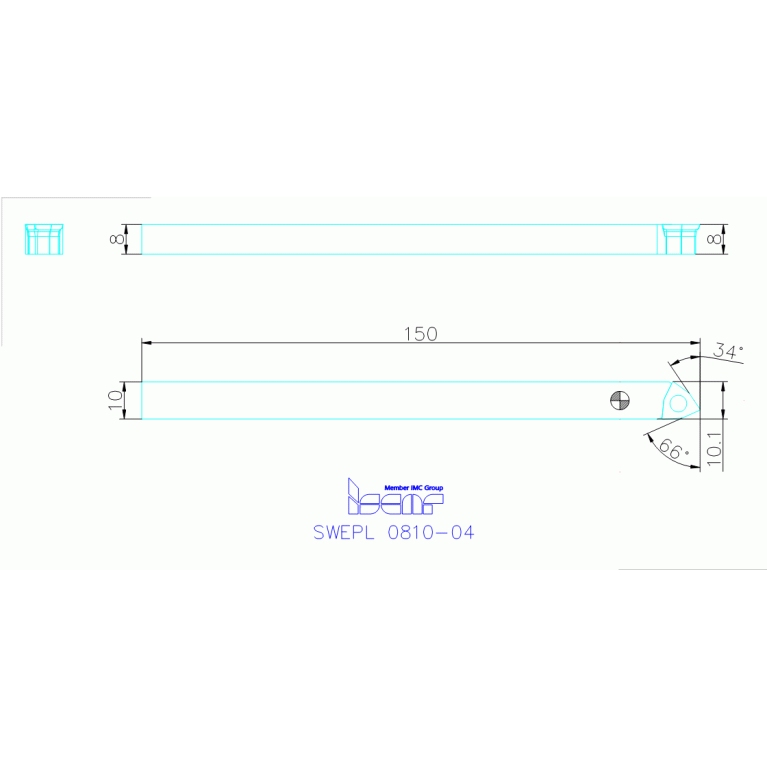

SWEPL 0810-04

Артикул: 3730140

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT08100105

DIN CSW1

IS-27827385272325

EPSR Insert included angle

84 Degree

FamilyProducts

60° Approach Angle Screw Lock Toolholders Carrying Trigon Inserts, for Swiss Automatics

HAND Cutting direction

L - Left

HF Functional height

8 mm

ID Technical product number

3730140

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A0810$$$$

ISO CSW1

IS$$27827385272325

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

60 Degree

LF Functional length

150 mm

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0810

LOC-03 H Shank height

8 mm

LOC-03 ISO

VKT01A0810$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT08100105

MIID Master insert identification

WPEX 040200L08

Name Identifying order number

SWEPL 0810-04

OAL Overall length

150 mm

WF Functional width

10.1 mm

Working process

No working processes available

WT Weight of item

0.1 kg
