Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning SWAPL 1212-05

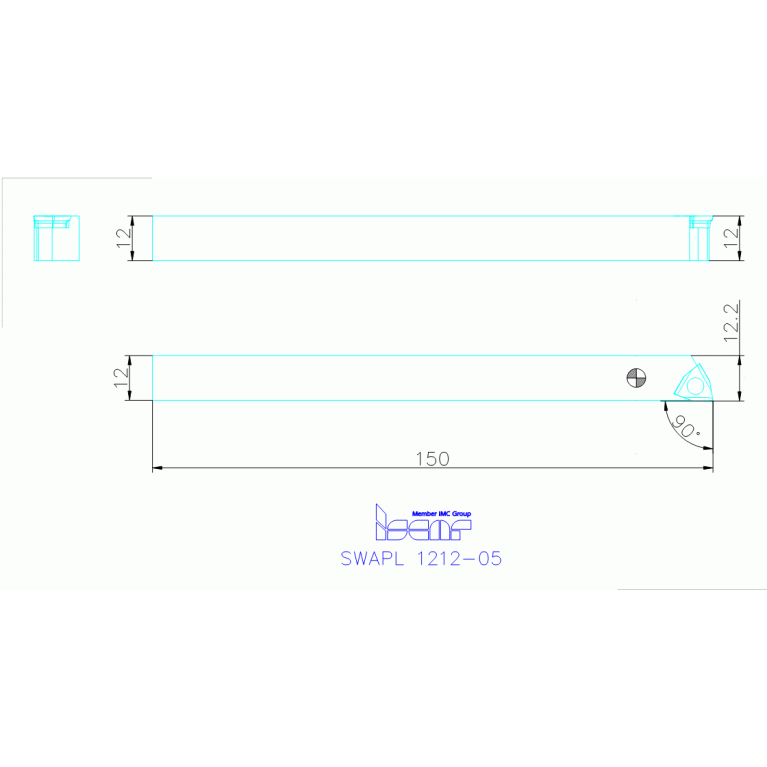

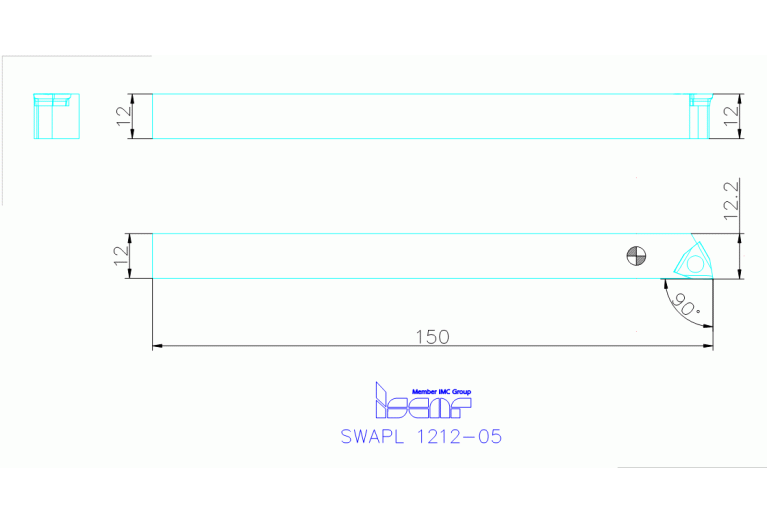

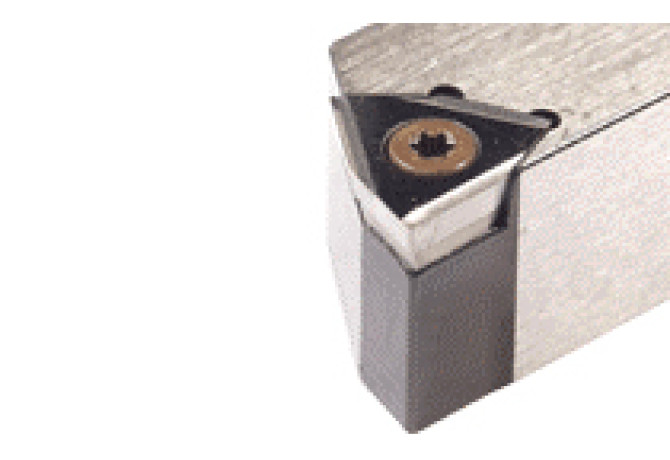

SWAPL 1212-05

Артикул: 3790162

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT12120105

EPSR Insert included angle

80 Degree

FamilyProducts

90° Lead Angle Screw Lock Tools Carrying Trigon Inserts for Swiss Automatic Machines

HAND Cutting direction

L - Left

HF Functional height

12 mm

ID Technical product number

3790162

Interface codes

J6 / J61

ISO

VKT01A1212$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

LF Functional length

150 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03 ISO

VKT01A1212$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120105

MIID Master insert identification

WPEX 050300L08

Name Identifying order number

SWAPL 1212-05

OAL Overall length

150 mm

WF Functional width

12.1 mm

Working process

No working processes available

WT Weight of item

0.18 kg
