Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning SVHNR 2525M-22-AL-JHP

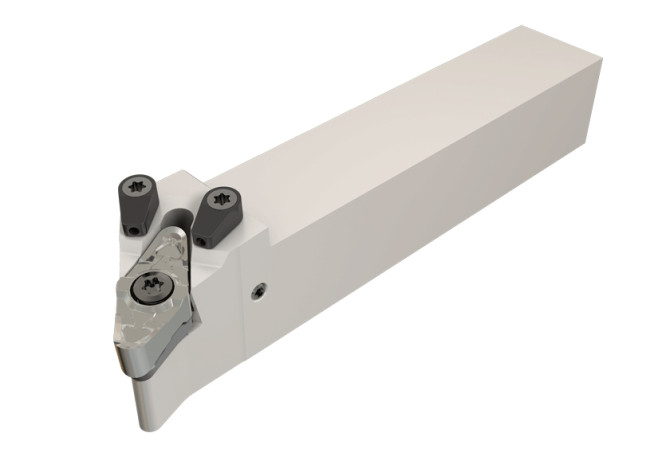

SVHNR 2525M-22-AL-JHP

Артикул: 3336018

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-112252847867116

FamilyProducts

Screw Lock Tools with Channels for High-Pressure Coolant Carrying 35° Rhombic Inserts

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

7 Degree

HAND Cutting direction

R - Right

HF Functional height

25 mm

ID Technical product number

3336018

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$112252847867116

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

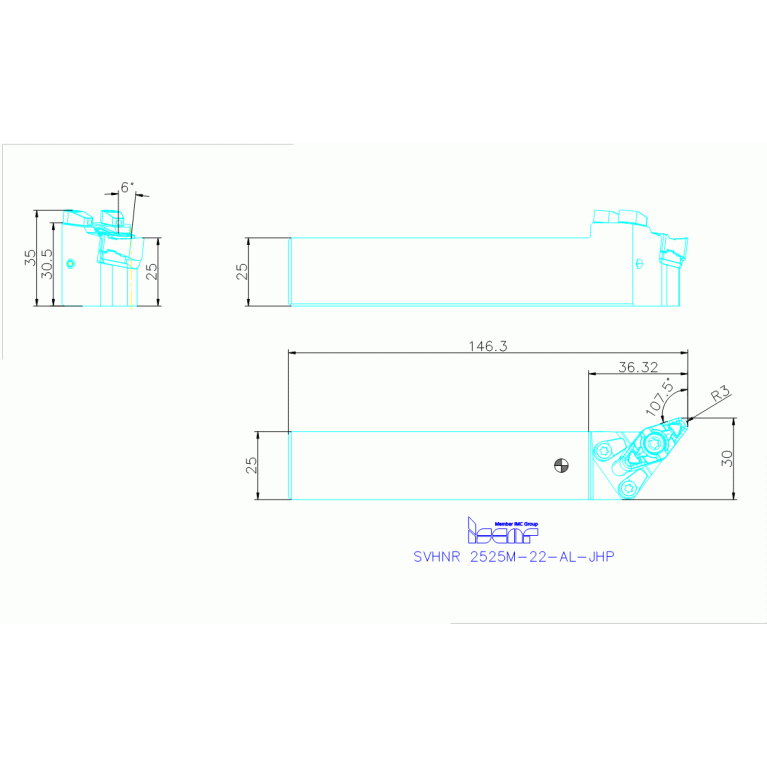

LF Functional length

146.34 mm

LH Head length

36.3 mm

LOC-03 B Shank width

25 mm

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

VNGU 220630-R3N

Name Identifying order number

SVHNR 2525M-22-AL-JHP

WF Functional width

30.03 mm

Working process

No working processes available
