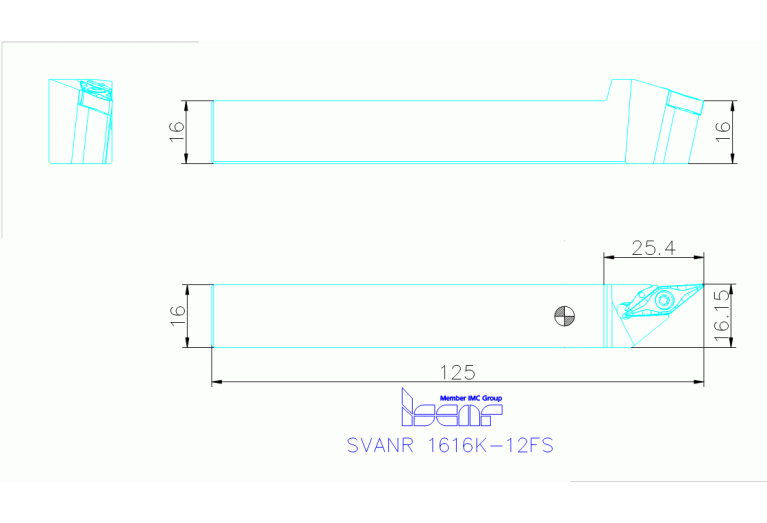

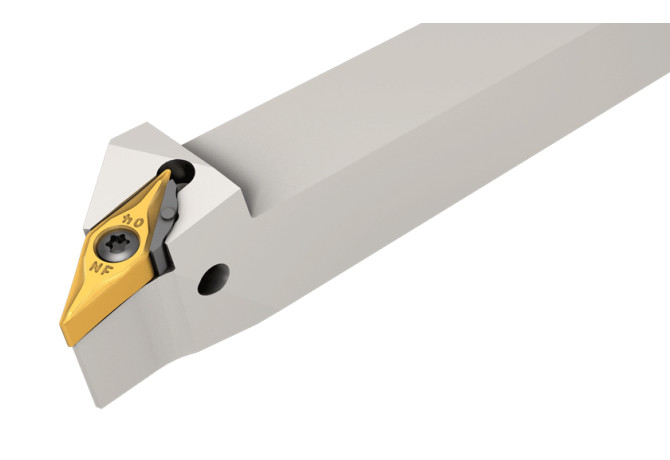

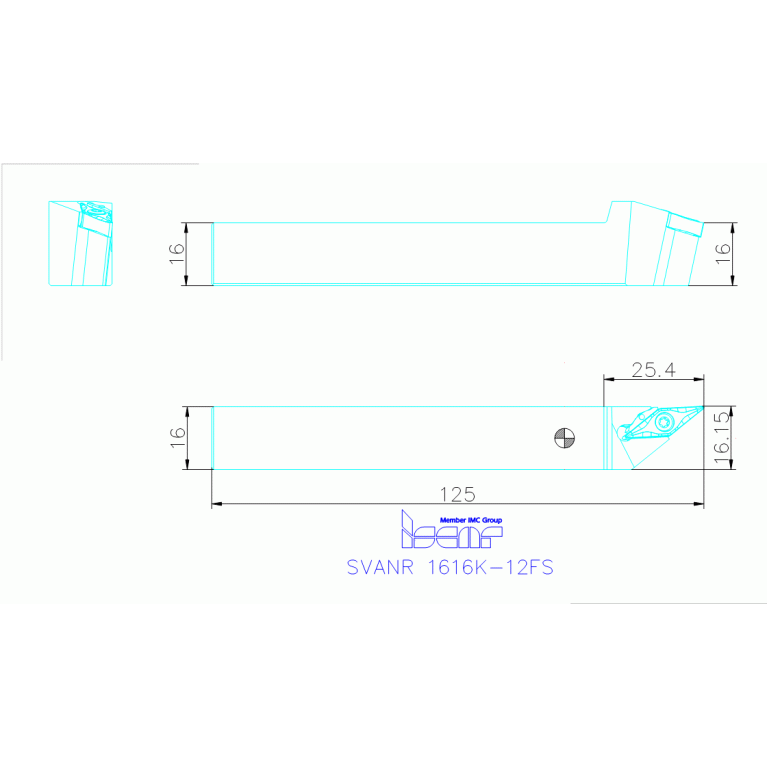

SVANR 1616K-12FS

Артикул: 3692795

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT16160105

EPSR Insert included angle

35 Degree

FamilyProducts

Screw Lock Holders for Negative, 35° Inserts with a Wedge for High Rigidity in Profiling Applications

HAND Cutting direction

R - Right

HF Functional height

16 mm

ID Technical product number

3692795

Interface codes

J6 / J61

ISO

VKT01A1616$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

125 mm

LH Head length

25.4 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03 ISO

VKT01A1616$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

MIID Master insert identification

VNMG 12T302-SF

Name Identifying order number

SVANR 1616K-12FS

OAL Overall length

125 mm

WF Functional width

16.2 mm

Working process

No working processes available

WT Weight of item

0.23 kg
