Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning SDJCL2525M11JET

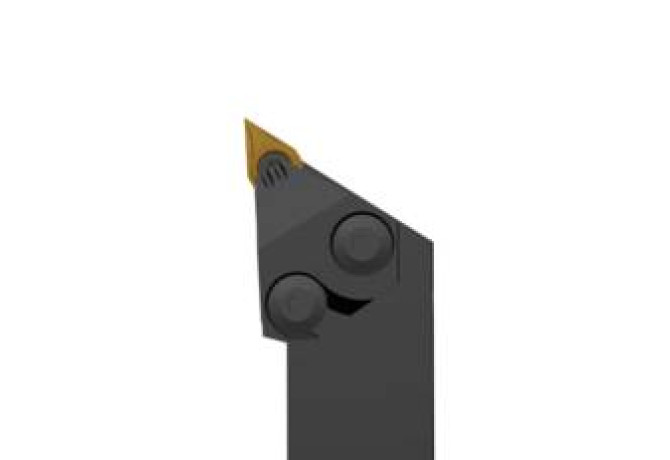

SDJCL2525M11JET

SDJCL2525M11JET

SDJCL2525M11JET

SDJCL2525M11JET

SDJCL2525M11JET

SDJCL2525M11JET

SDJCL2525M11JET

Seco

Артикул: 02605851

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.97 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2018

DIN

VKT25250105

EPSR Insert included angle

55 Degree

FamilyProducts

SDJCL2525M11JET

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

ID Technical product number

02605851

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$DC11T3**3LB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

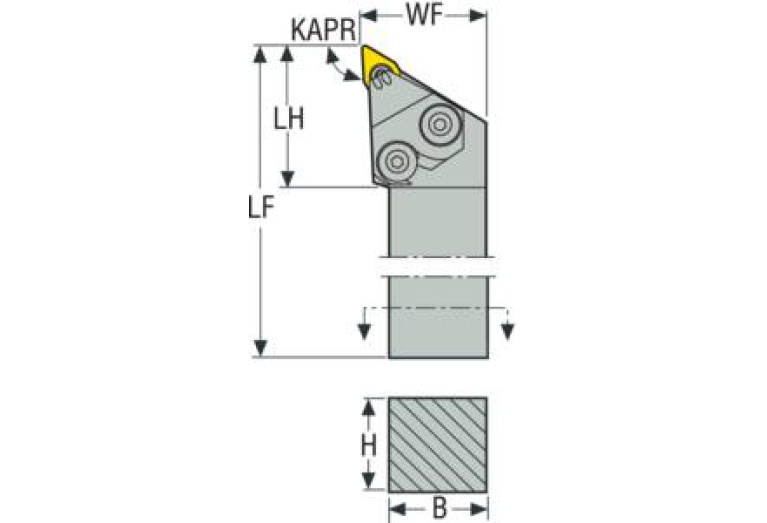

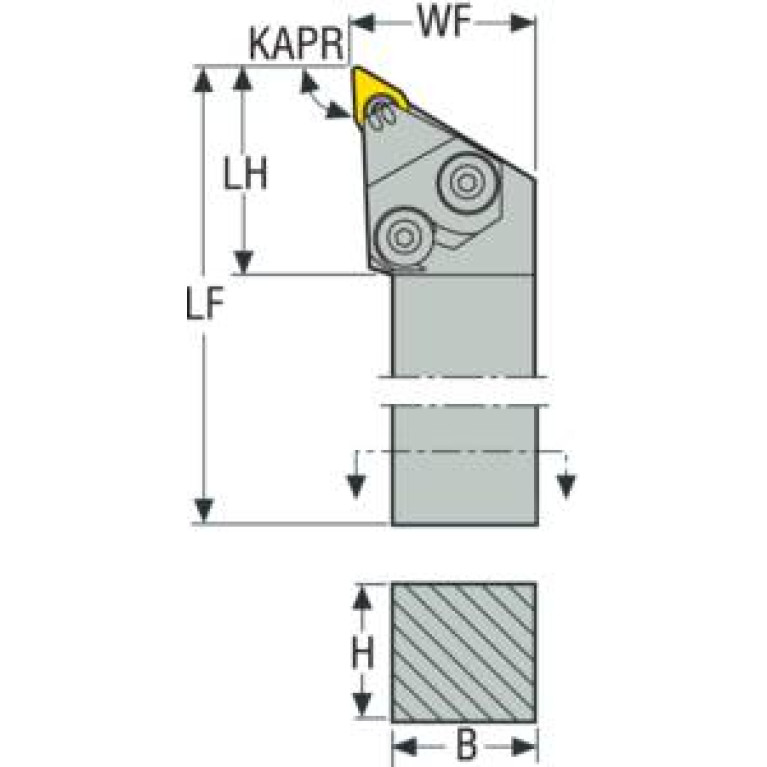

KAPR Tool cutting edge angle

93 Degree

LAMS Inclination angle

0 Degree

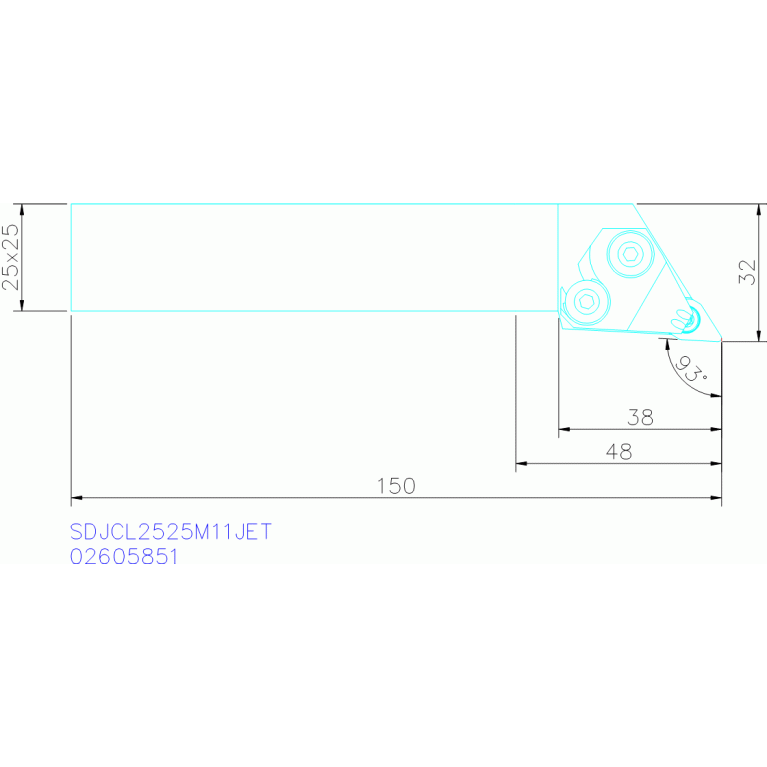

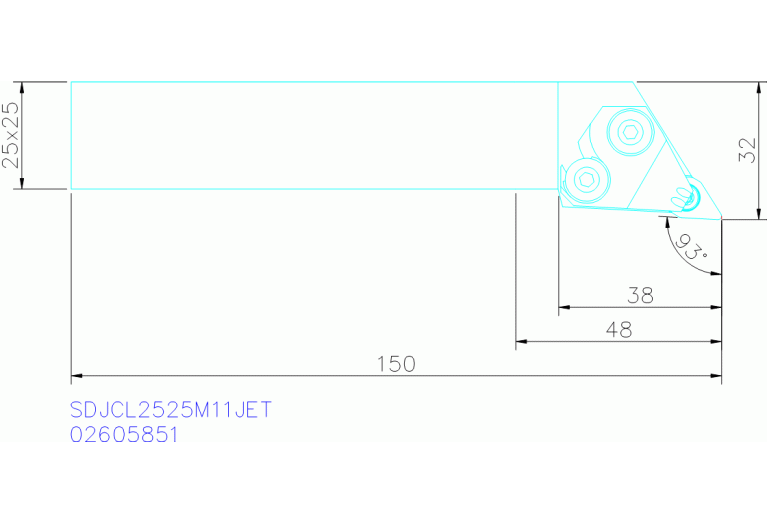

LF Functional length

150 mm

LH Head length

38 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

MIID Master insert identification

DCGT11T301-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SDJCL2525M11JET

STDDES Standard designation

SDJCL2525M11JET

THSC Tool holder shape code

A - offset shank design

WF Functional width

32 mm

Working process

No working processes available

WT Weight of item

0.706 kg
