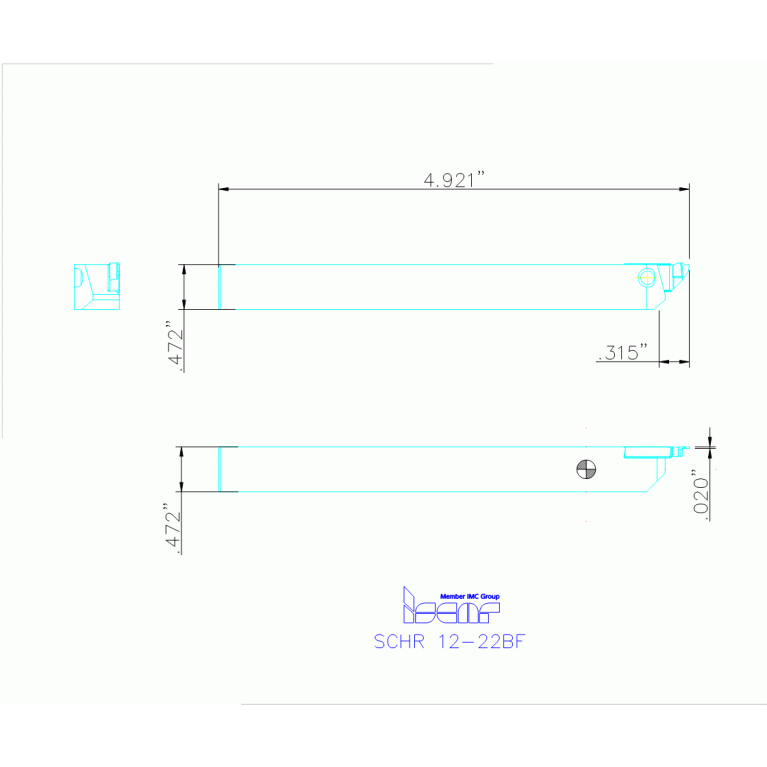

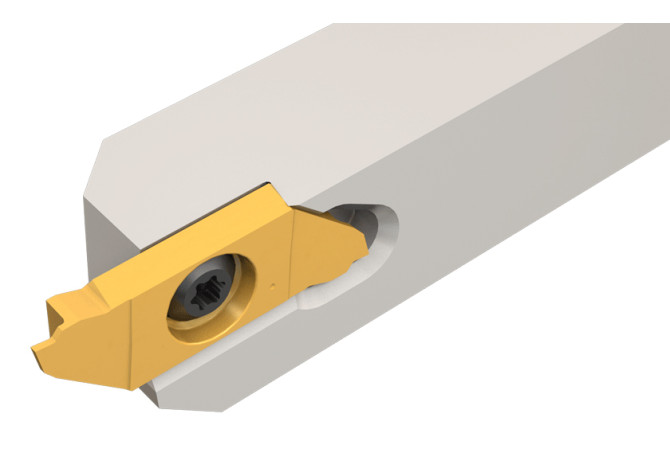

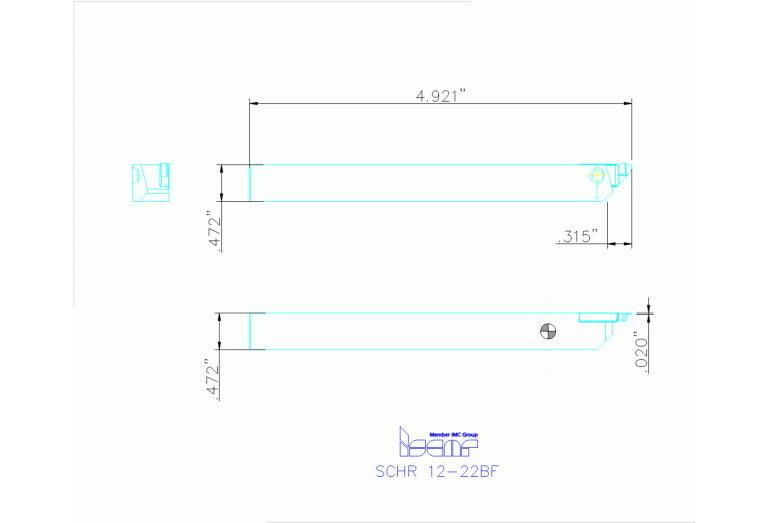

SCHR 12-22BF

Артикул: 2801917

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-86355059182620

FamilyProducts

Grooving and Turning Tools with Back and Front Clamping for Swiss-Type and Automatic Machines

HAND Cutting direction

R - Right

ID Technical product number

2801917

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$86355059182620

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

125 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

SCHR 12-22BF

OAL Overall length

125 mm

Working process

No working processes available

WT Weight of item

0.13 kg
