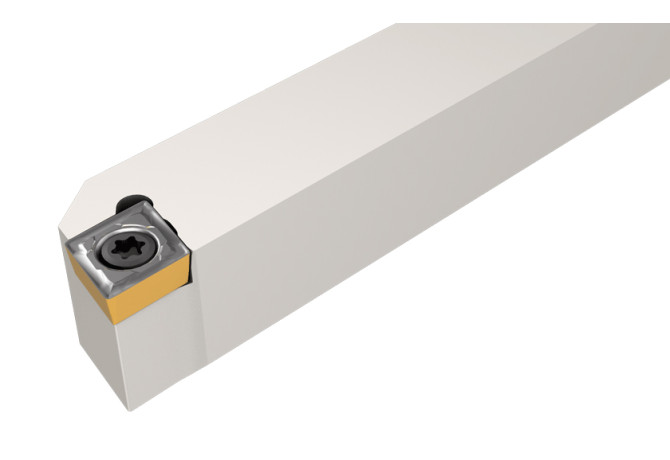

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning SCACL 0808K-06S

SCACL 0808K-06S

Артикул: 3603072

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT08080105

EPSR Insert included angle

80 Degree

FamilyProducts

Screw Lock Tools for Swiss-Type Machines Carrying 7° Clearance 80° Diamond Inserts

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

8 mm

ID Technical product number

3603072

Interface codes

J6 / J61

ISO

VKT01A0808$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

LF Functional length

125 mm

LH Head length

8 mm

LOC-03 B Shank width

8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0808

LOC-03 H Shank height

8 mm

LOC-03 ISO

VKT01A0808$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT08080105

MIID Master insert identification

CCMT 2-1-WG

Name Identifying order number

SCACL 0808K-06S

OAL Overall length

125 mm

WF Functional width

8.2 mm

Working process

No working processes available

WT Weight of item

0.06 kg
