Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning S40S PQFNL-12

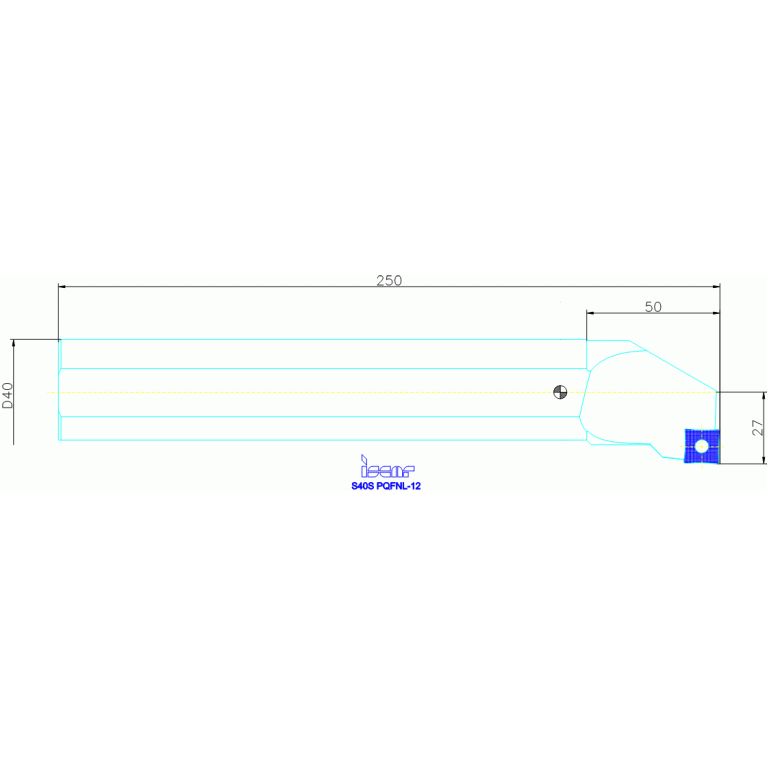

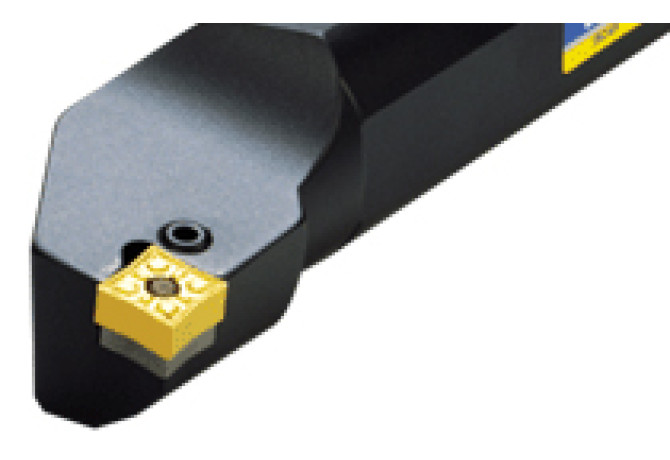

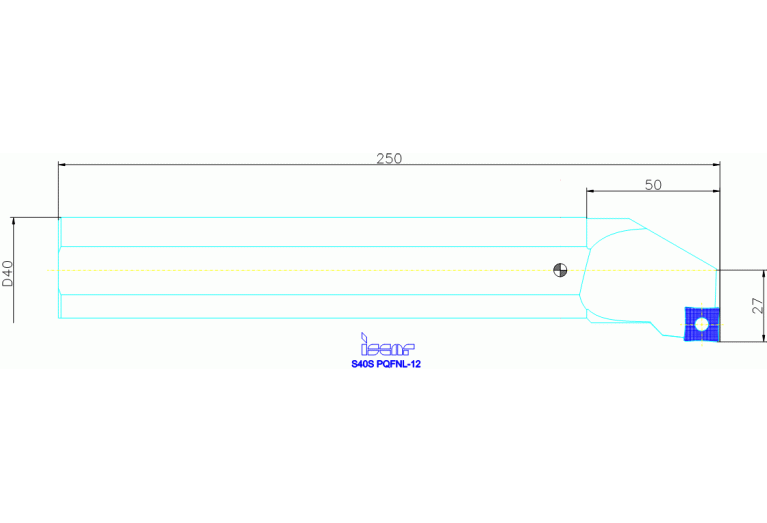

S40S PQFNL-12

Артикул: 3601522

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL04002205

DIN CSW1

IS-298356989013600

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock Boring Bars Carrying Negative Square Inserts with 80° Corners for Internal Facing

HAND Cutting direction

L - Left

ID Technical product number

3601522

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22G4000h$06

ISO CSW1

IS$$298356989013600

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

250 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

36 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G4000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002205

MIID Master insert identification

QNMG 120408-GN

Name Identifying order number

S40S PQFNL-12

OAL Overall length

250 mm

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

2.17 kg
