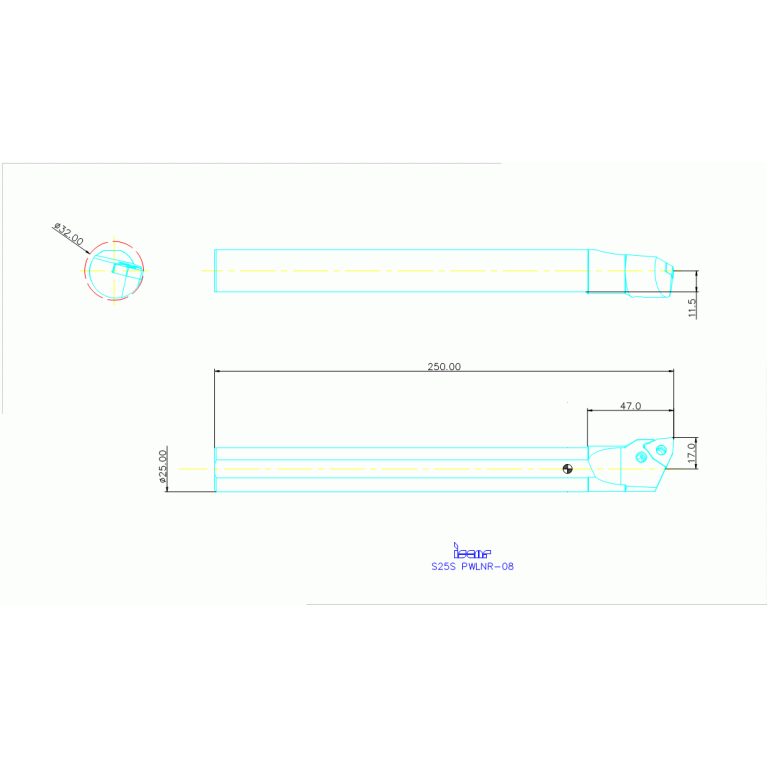

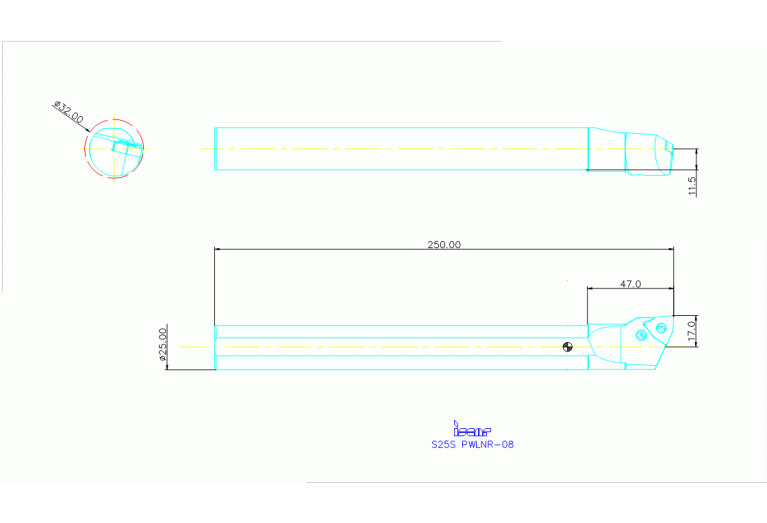

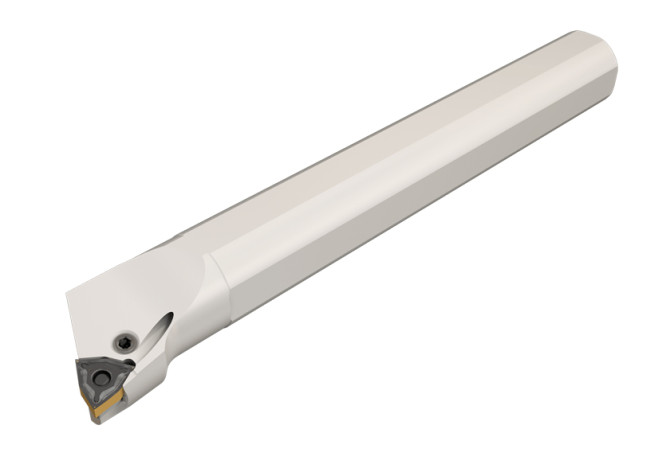

S25S PWLNR-08

Артикул: 3601103

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02502205

DMIN Minimum bore diameter

32 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock Boring Bars Carrying Double-Sided Trigon Inserts

HAND Cutting direction

R - Right

ID Technical product number

3601103

Interface codes

J6 / J61

ISO

ZYL22G2500h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

250 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502205

MIID Master insert identification

WNMG 080404-GN

Name Identifying order number

S25S PWLNR-08

OAL Overall length

250 mm

WF Functional width

17 mm

Working process

No working processes available

WT Weight of item

0.88 kg
