Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning S1010K SWUBL-06

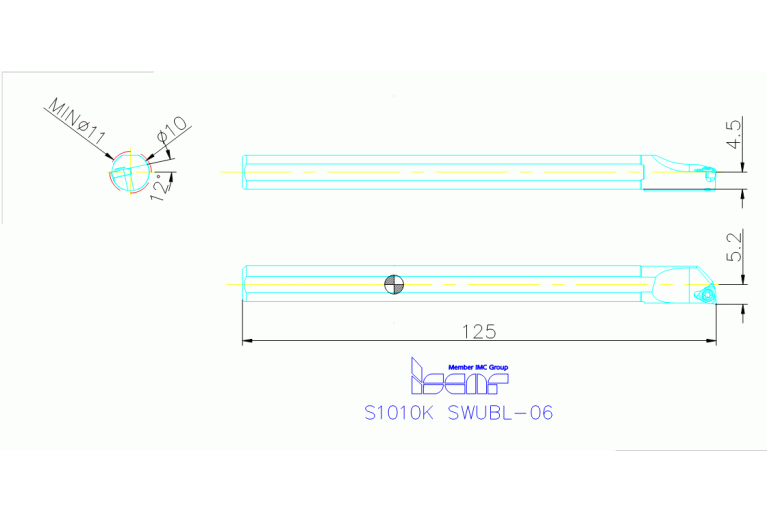

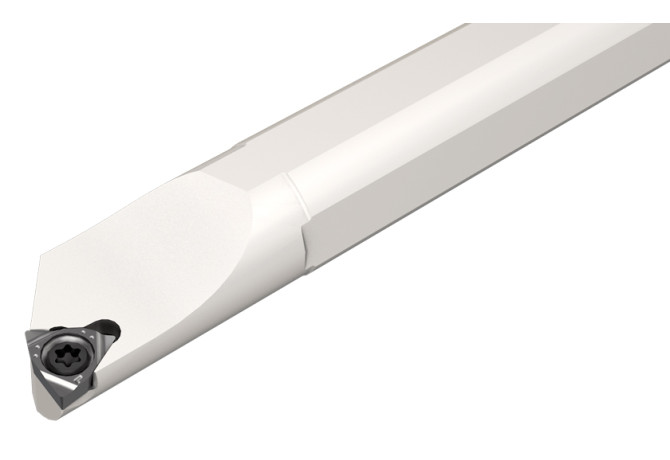

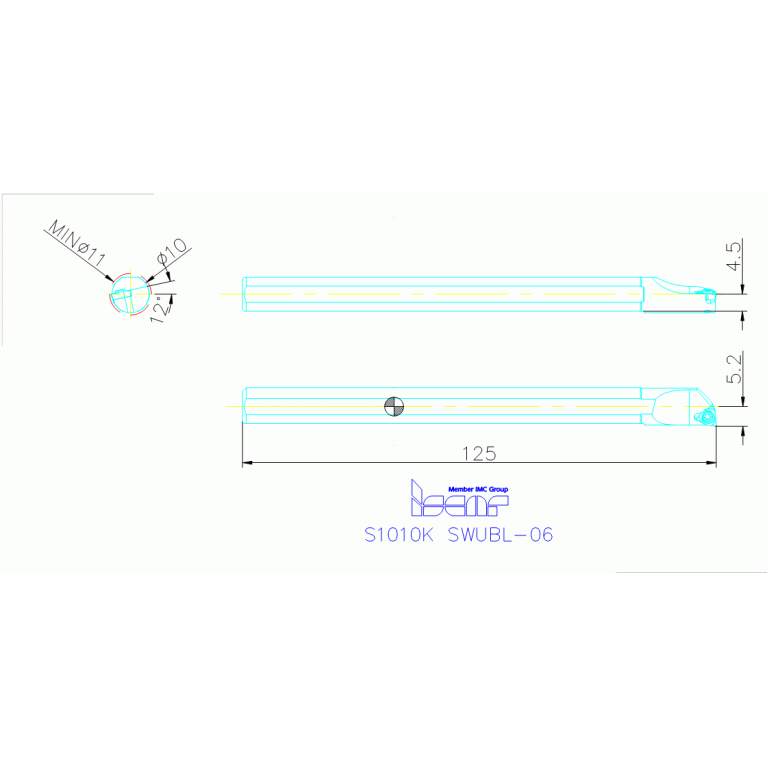

S1010K SWUBL-06

Артикул: 3694186

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01002205

DMIN Minimum bore diameter

11 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Screw Clamp Miniature Boring Bars Carrying Small WBMT Trigon Inserts

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

ID Technical product number

3694186

Interface codes

J6 / J61

ISO

ZYL22G1000h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

125 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 H Shank height

9 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G1000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01002205

MIID Master insert identification

WBMT 060101R

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

S1010K SWUBL-06

OAL Overall length

125 mm

WF Functional width

5.2 mm

Working process

No working processes available

WT Weight of item

0.07 kg
