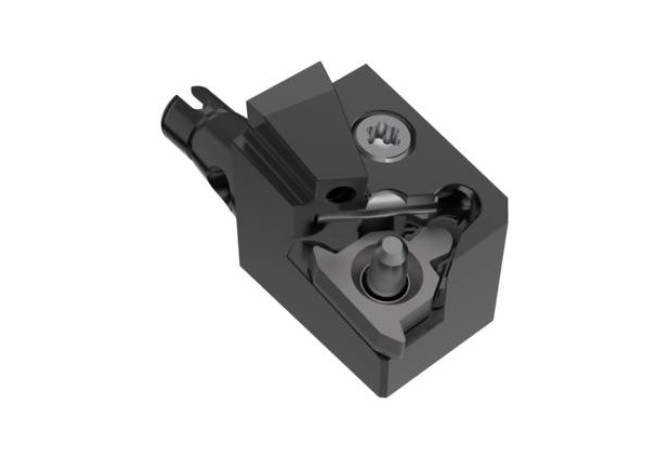

QC16-PEL-16HDJET

Артикул: 03280775

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/22/2022

FamilyProducts

QC16-PEL-16HDJET

HAND Cutting direction

L - Left

HF Functional height

7.9 mm

ID Technical product number

03280775

Interface codes

/ J61

Interface codes CSW1

/ J441

ISO

SQC01G1600$$$$

ISO CSW1

SO$$EL16L

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

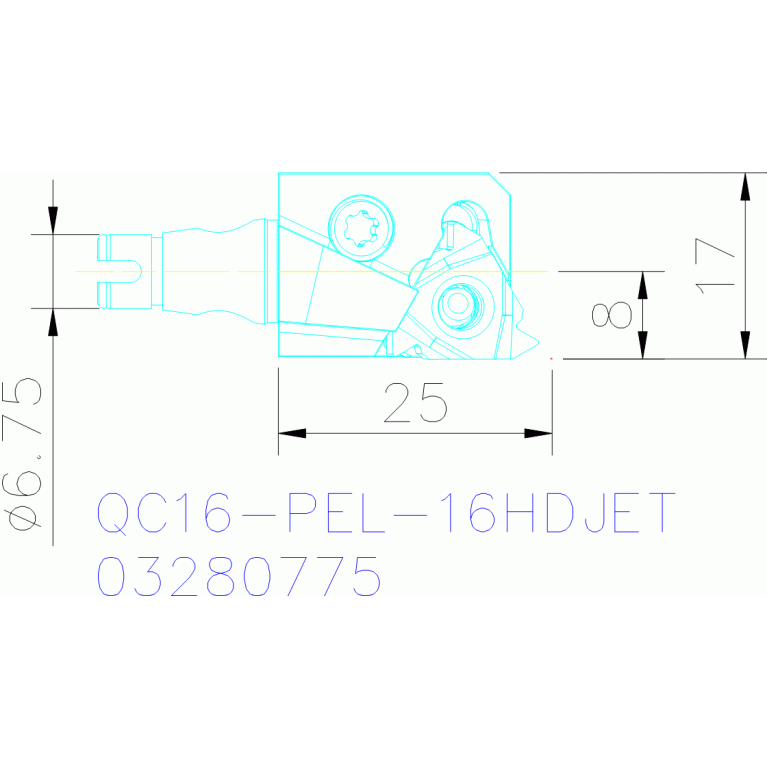

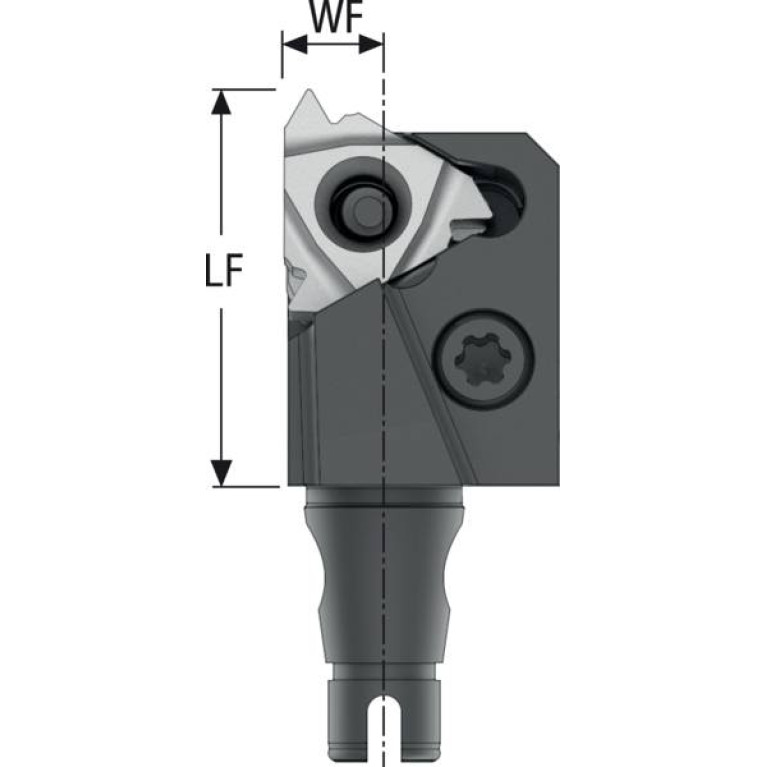

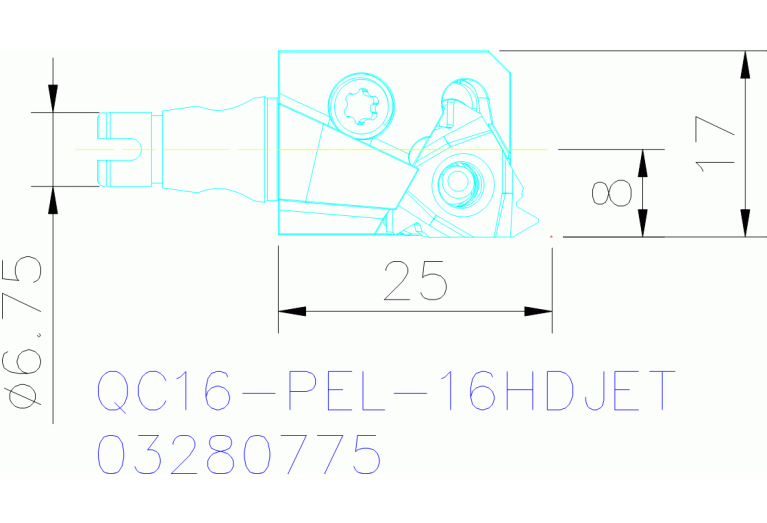

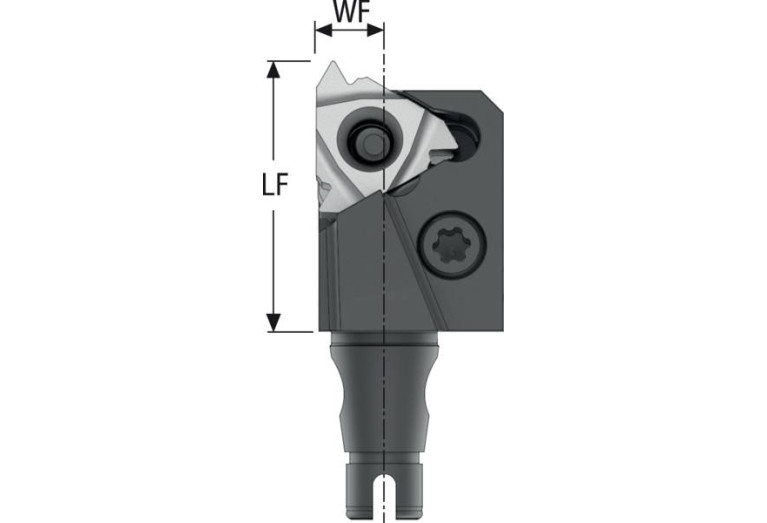

LF Functional length

25 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 ISO

SQC01G1600$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

16ELA55

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

QC16-PEL-16HDJET

STDDES Standard designation

QC16-PEL-16HDJET

WF Functional width

8 mm

Working process

No working processes available

WT Weight of item

0.2 kg
