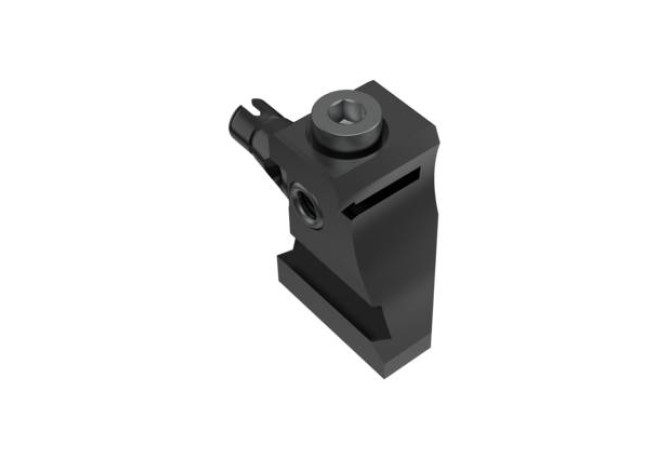

QC16-L150.10-15JETI

Артикул: 03280778

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/22/2022

DIN CSW1

SO-SO 150 10-15LJET

FamilyProducts

QC16-L150.10-15JETI

HAND Cutting direction

N - Neutral

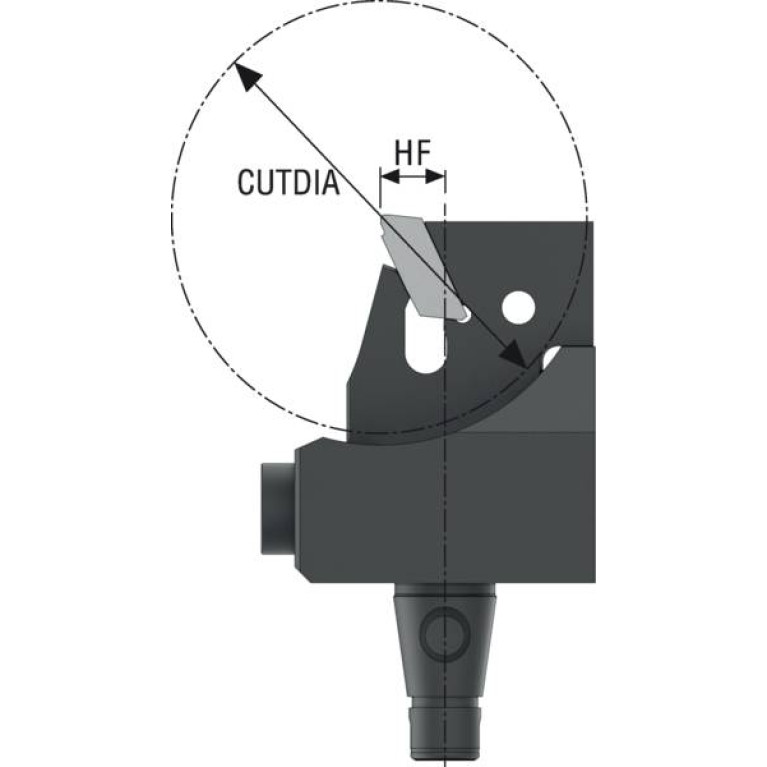

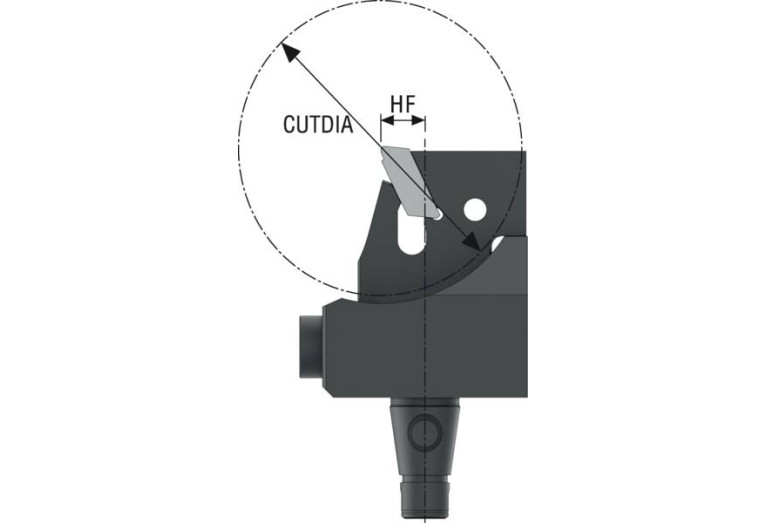

HF Functional height

8 mm

ID Technical product number

03280778

Interface codes

/ J61

Interface codes CSW1

J41 /

ISO

SQC01G1600$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

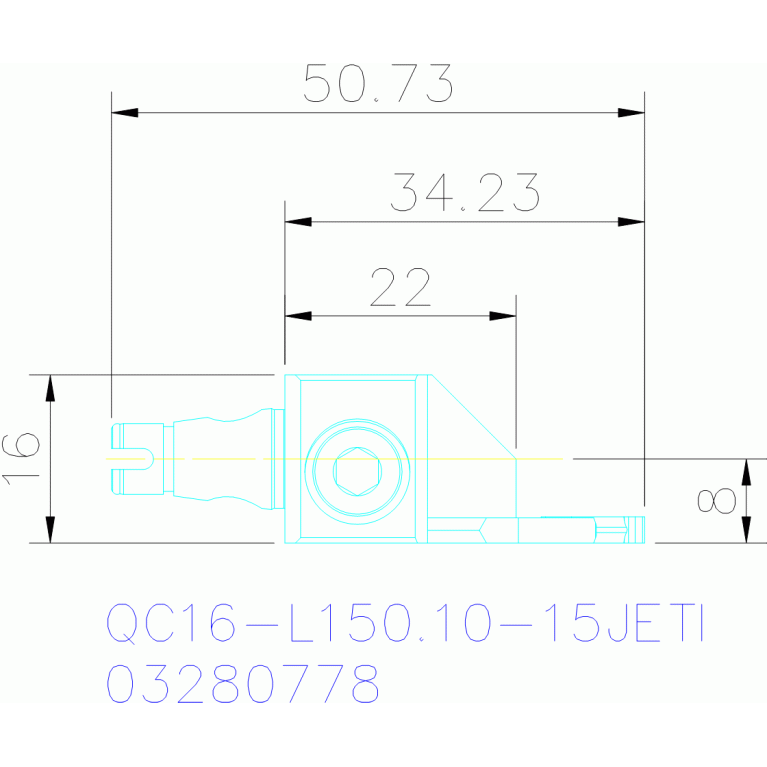

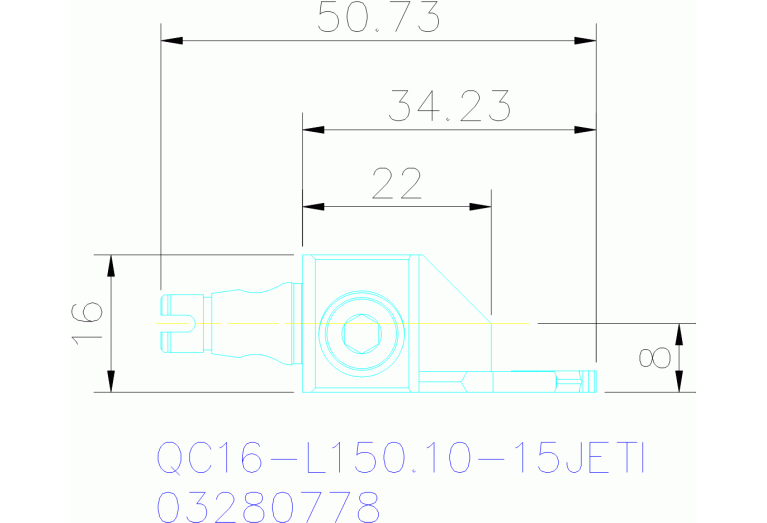

LF Functional length

34.2 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 ISO

SQC01G1600$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

QC16-L150.10-15JETI

STDDES Standard designation

QC16-L150.10-15JETI

Working process

No working processes available

WT Weight of item

0.048 kg
