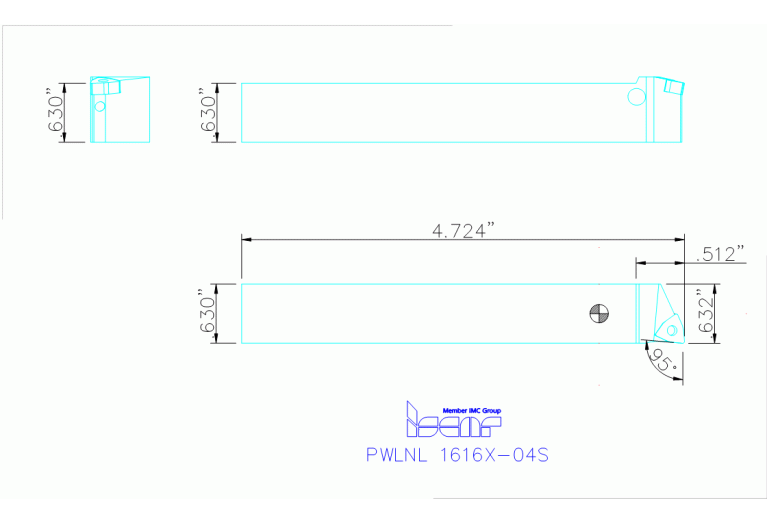

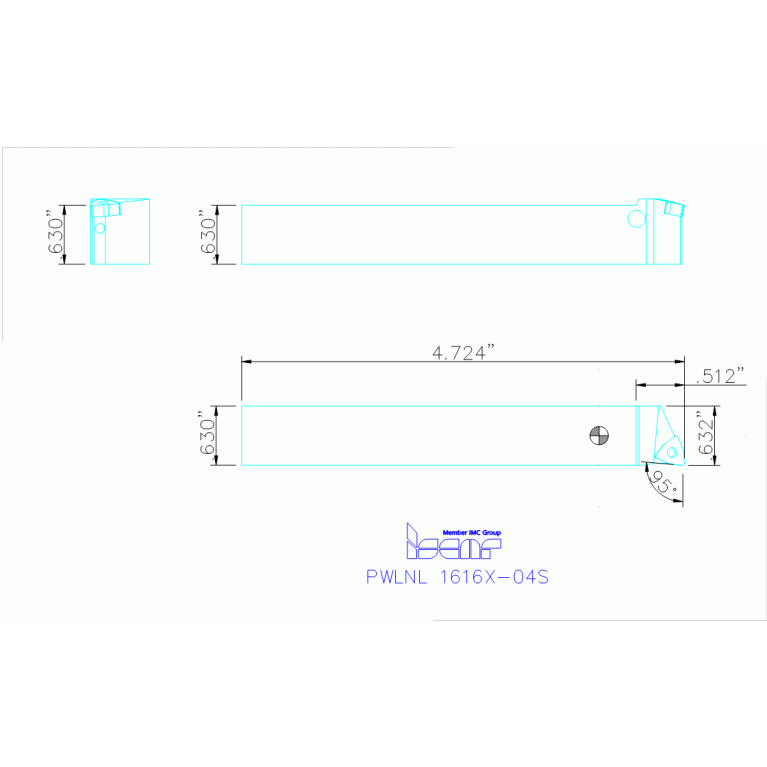

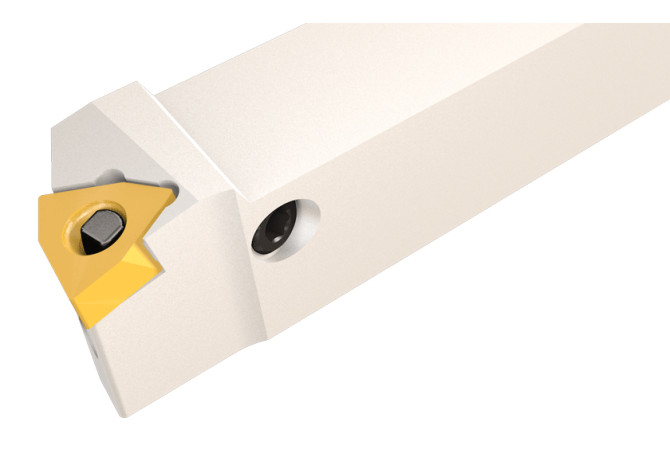

PWLNL 1616X-04S

Артикул: 6712857

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT16160105

DIN CSW1

IS-555626933217534

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock External Turning Tools Carrying WNGP 0403.. Double-Sided Trigon Inserts

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

16 mm

ID Technical product number

6712857

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A1616$$$$

ISO CSW1

IS$$555626933217534

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

120 mm

LH Head length

13 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03 ISO

VKT01A1616$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

MIID Master insert identification

WNGP 040302R-F2P

Name Identifying order number

PWLNL 1616X-04S

OAL Overall length

120 mm

WF Functional width

16 mm

Working process

No working processes available

WT Weight of item

0.26 kg
