Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PTGNL 3232P-22X

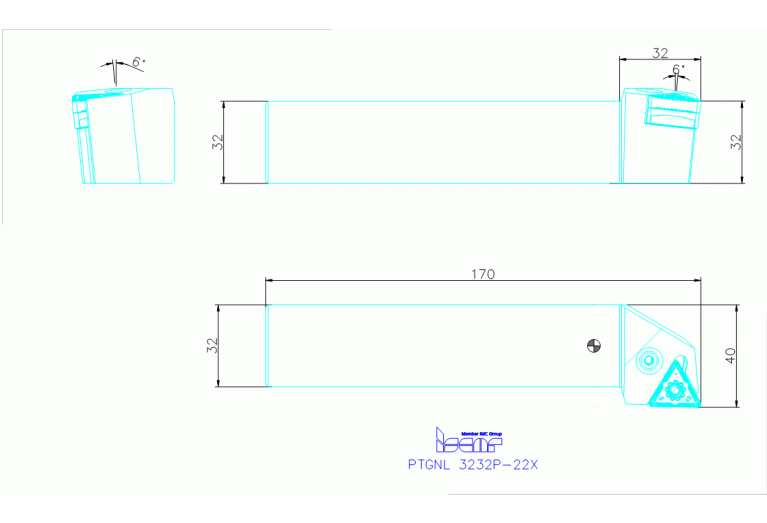

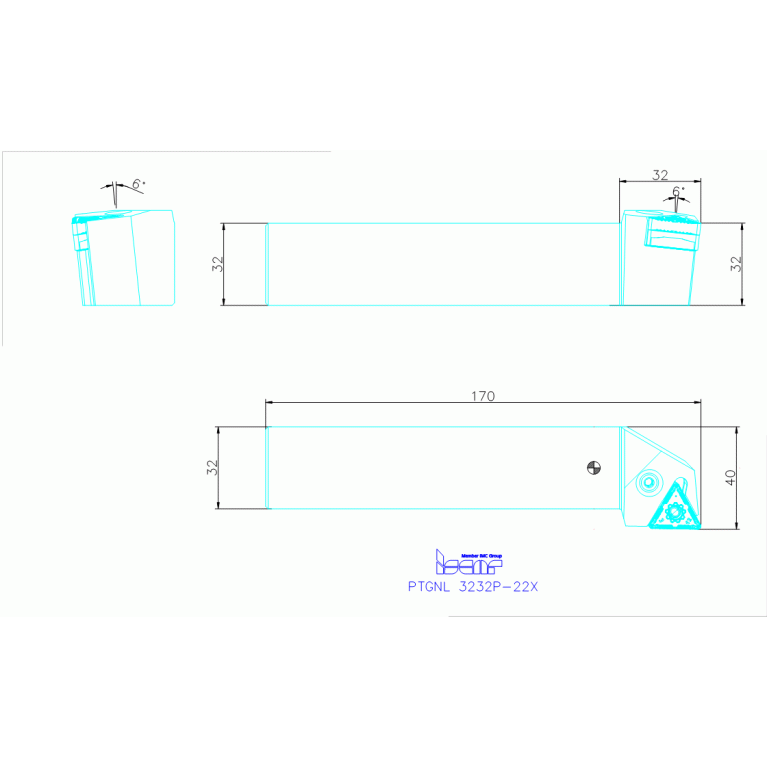

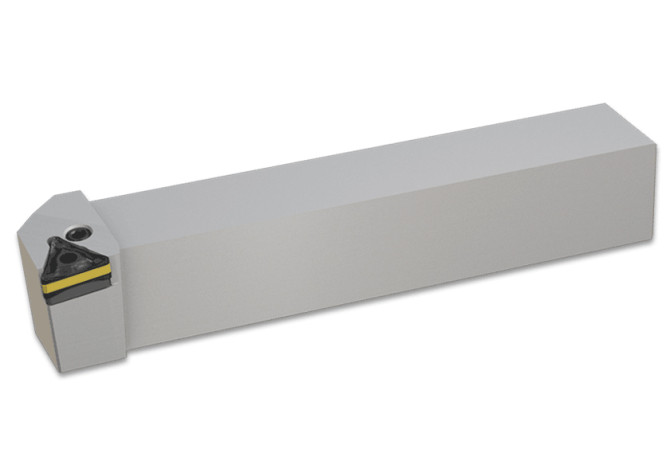

PTGNL 3232P-22X

Артикул: 3603571

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT32320105

DIN CSW1

IS-25982950502714

EPSR Insert included angle

60 Degree

FamilyProducts

91° Lead Angle Lever Lock External Turning Tools Carrying Negative Triangular Inserts

HAND Cutting direction

L - Left

HF Functional height

32 mm

ID Technical product number

3603571

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A3232$$$$

ISO CSW1

IS$$25982950502714

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

LF Functional length

170 mm

LH Head length

32 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

3232

LOC-03 H Shank height

32 mm

LOC-03 ISO

VKT01A3232$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

MIID Master insert identification

TNMG 220412-F3P

Name Identifying order number

PTGNL 3232P-22X

OAL Overall length

170 mm

WF Functional width

40 mm

Working process

No working processes available

WT Weight of item

1.39 kg
