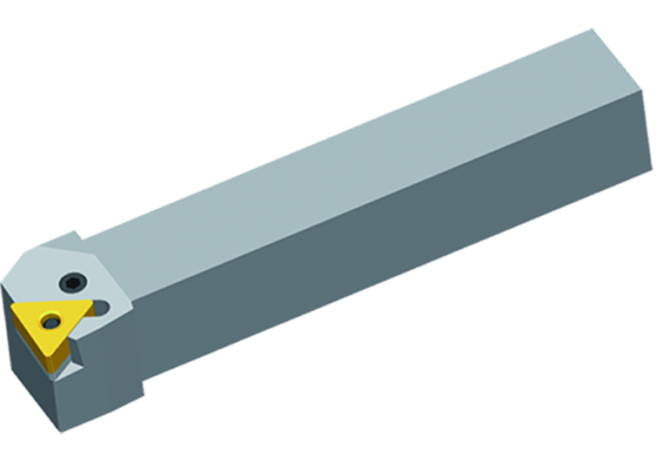

PTFNL4040S27

Артикул: PTFNL4040S27

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

15.875 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

6.35 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

31.2 kg

DIN

VKT40400105

DIN CSW1

TN2706242N

EPSR Insert included angle

60 Degree

FamilyProducts

TN** holder (external)

HAND Cutting direction

L - Left

HF Functional height

40 mm

ID Identifying order number

PTFNL4040S27

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

L Cutting edge length

27.5 mm

LF Functional length

250 mm

LH Head length

34 mm

LOC-03 B Shank width

40 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

4040

LOC-03 H Shank height

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT40400105

MIID Master insert identification

TNMG270608

MTP Clamping type code

P - Hole clamping, with straight bore

OAL Overall length

250 mm

STDDES Standard designation

PTFNL4040S27

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

50 mm

Working process

DDA - External turning,DDB - External and internal turning
