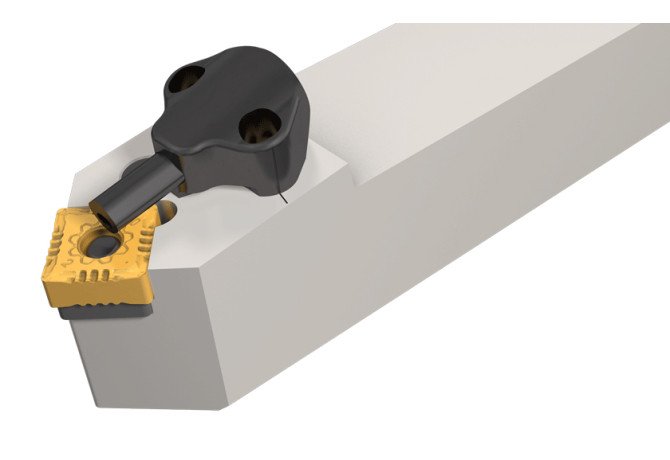

PSDNN 2525M-12-JHP

Артикул: 3603390

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

8 - Axial concentrical or peripheral/decentralized adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT25250115

EPSR Insert included angle

90 Degree

FamilyProducts

45° Lead Angle Lever Lock Tools with Channels for High-Pressure Coolant Carrying ISO Negative SNMG Inserts

GAMF Rake angle radial

0 Degree

HAND Cutting direction

N - Neutral

HF Functional height

25 mm

ID Technical product number

3603390

Interface codes

J6 / J61

ISO

VKT01A2525$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

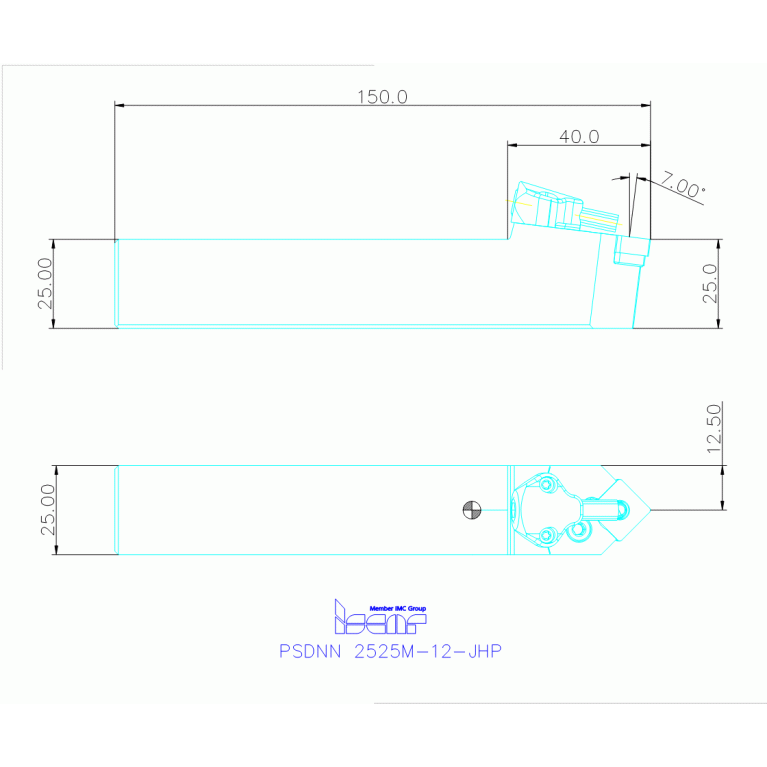

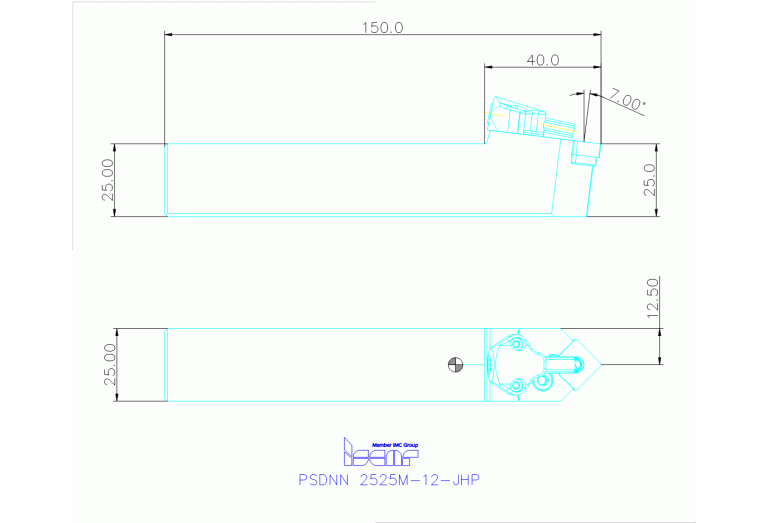

LF Functional length

150 mm

LH Head length

40 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03 ISO

VKT01A2525$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250115

MIID Master insert identification

SNMG 120408-GN

Name Identifying order number

PSDNN 2525M-12-JHP

OAL Overall length

150 mm

WF Functional width

12.5 mm

Working process

No working processes available

WT Weight of item

0.67 kg
