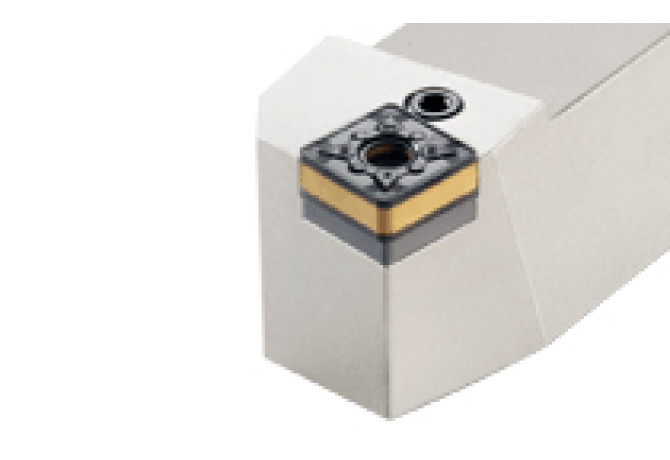

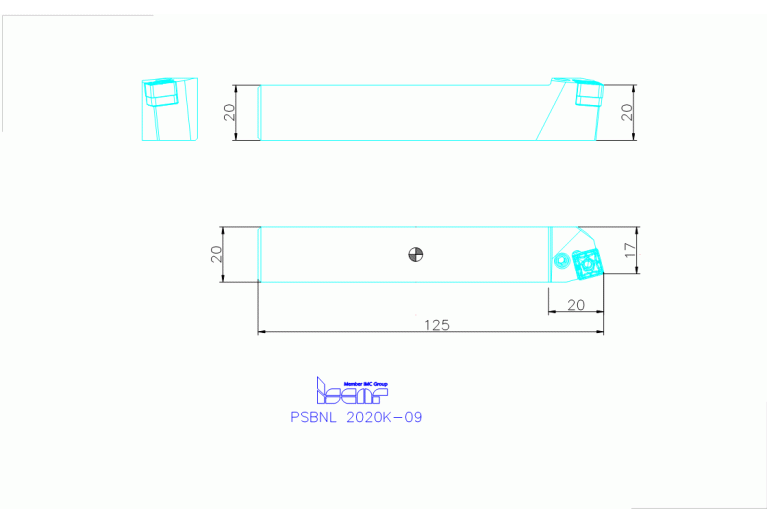

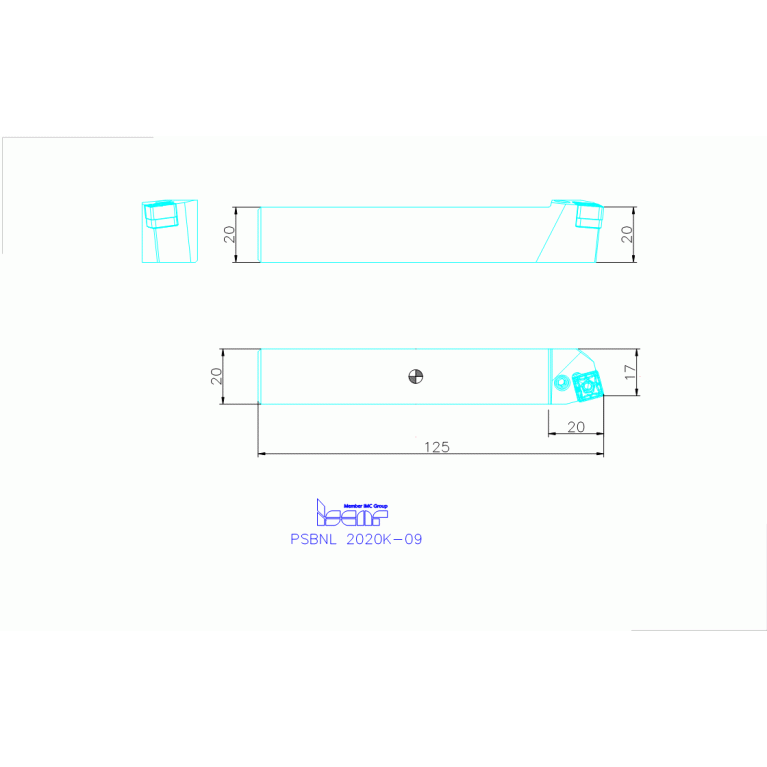

PSBNL 2020K-09

Артикул: 3603681

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT20200105

EPSR Insert included angle

90 Degree

FamilyProducts

Lever Lock 75° Lead Angle Turning Tools Carrying ISO Negative Square Inserts

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

3603681

Interface codes

J6 / J61

ISO

VKT01A2020$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

LF Functional length

125 mm

LH Head length

20 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

MIID Master insert identification

SNMG 090308-M3M

Name Identifying order number

PSBNL 2020K-09

OAL Overall length

125 mm

WF Functional width

17 mm

Working process

No working processes available

WT Weight of item

0.36 kg
