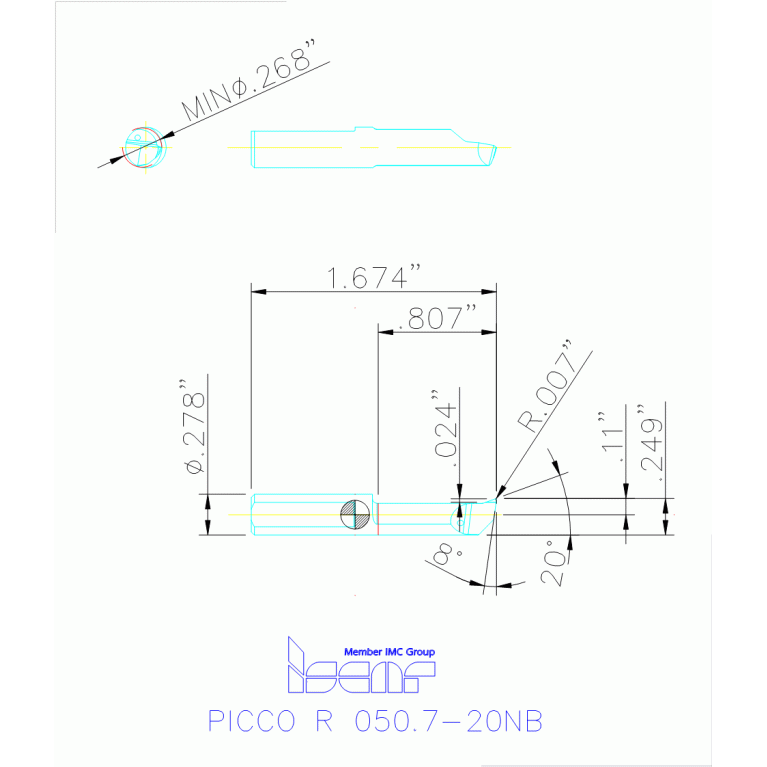

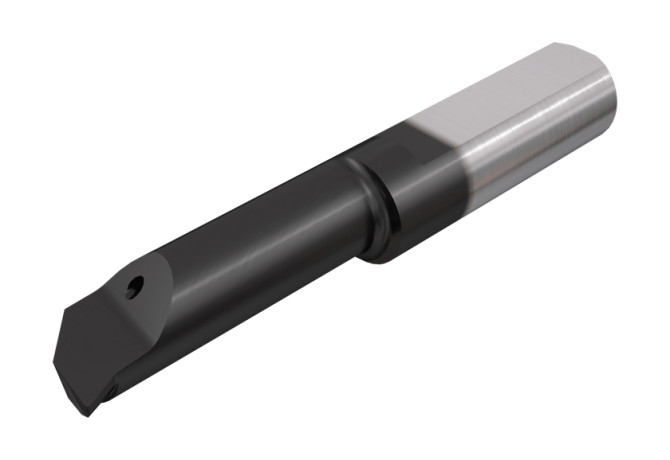

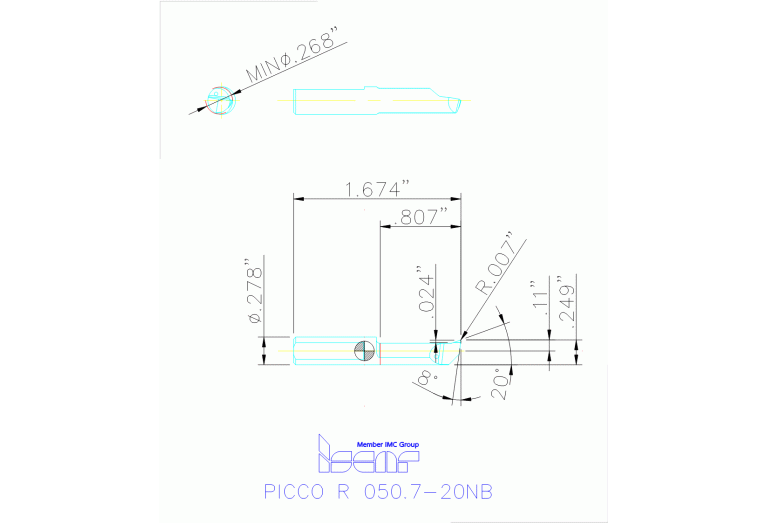

PICCO R 050.7-20NB IB55

Артикул: 3360851

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

8 - With coolant supply (entry), axial groove at shank

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00702215

DMIN Minimum bore diameter

6.8 mm

EPSR Insert included angle

62 Degree

FamilyProducts

CBN Tipped Inserts with Internal Coolant Channel for Internal Turning, Profiling and Chamfering of Hard Steel

HAND Cutting direction

R - Right

ID Technical product number

3360851

Interface codes

J6 / J61

ISO

ZYL22F7000h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7.05 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22F7000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702215

LPR Protruding length

24.5 mm

Name Identifying order number

PICCO R 050.7-20NB IB55

OAL Overall length

42.5 mm

WF Functional width

2.8 mm

Working process

No working processes available
