Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PICCO R 050.20.3-10N IC908

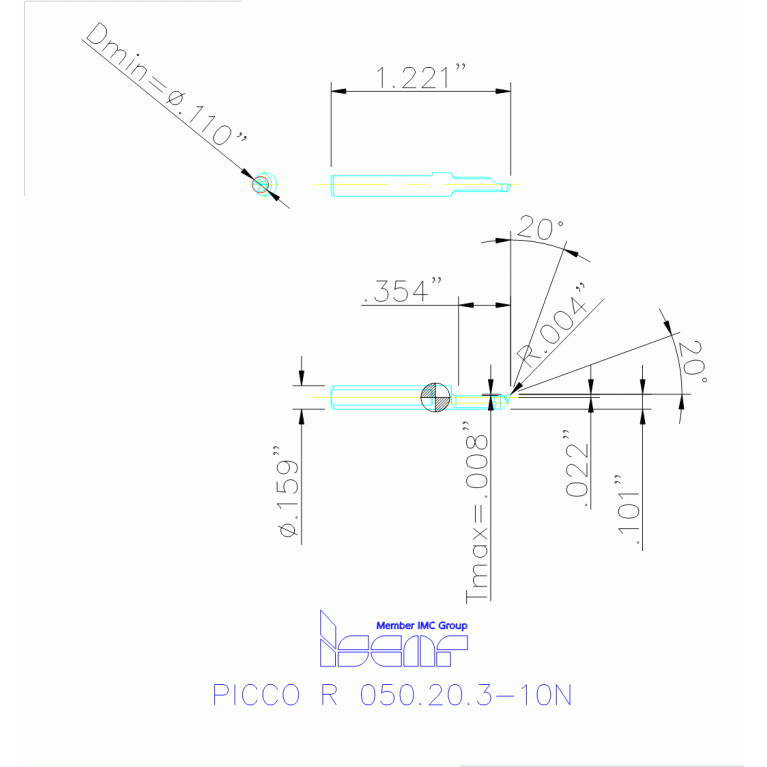

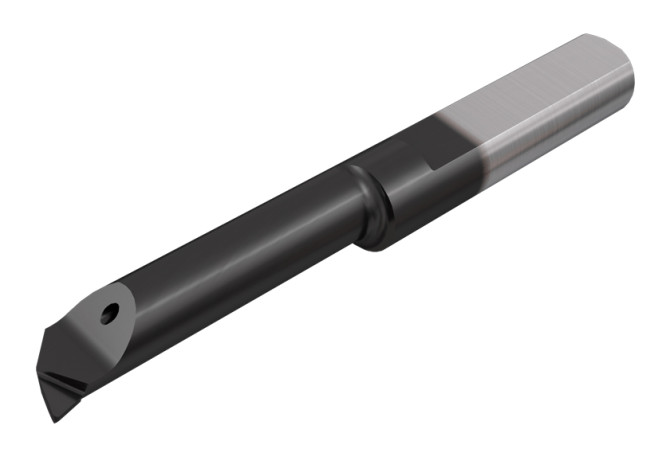

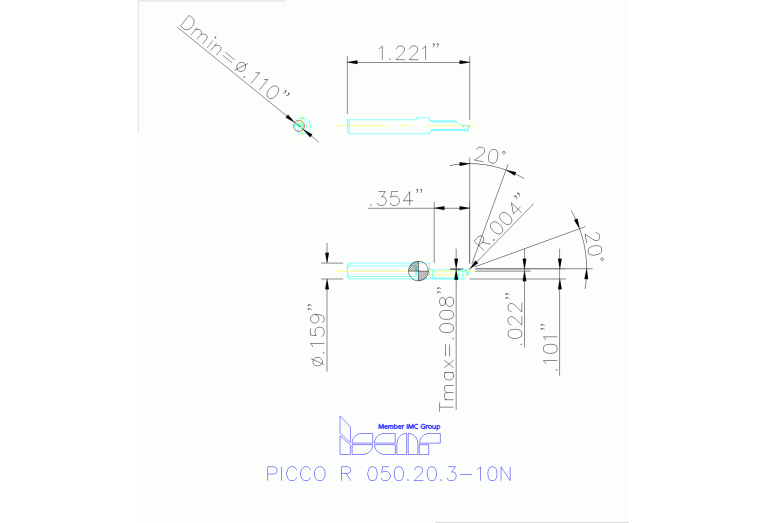

PICCO R 050.20.3-10N IC908

Артикул: 3360813

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DMIN Minimum bore diameter

2.8 mm

FamilyProducts

Inserts with Internal Coolant Channel for Internal Turning and Chamfering Next to the Bottom of Blind Holes

ID Technical product number

3360813

Interface codes

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 DCONMS Diameter

4.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

PICCO R 050.20.3-10N IC908

OAL Overall length

31 mm

WF Functional width

0.6 mm

Working process

No working processes available
