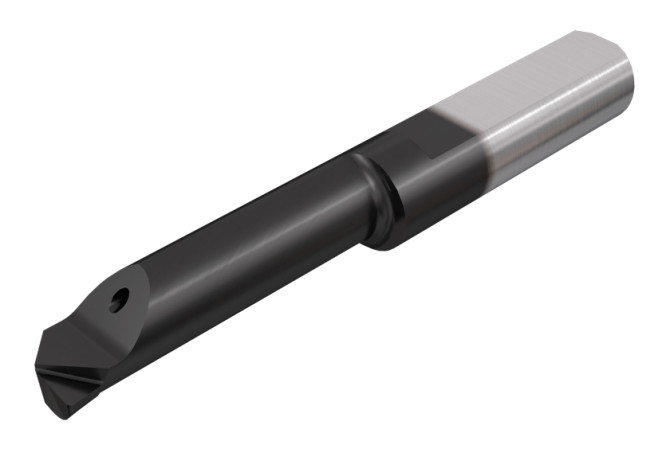

PICCO R 050.1-7N IC908

Артикул: 3360835

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

8 - With coolant supply (entry), axial groove at shank

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00402215

DMIN Minimum bore diameter

1 mm

EPSR Insert included angle

62 Degree

FamilyProducts

Inserts with Internal Coolant Channel for Internal Turning and Chamfering

HAND Cutting direction

R - Right

ID Technical product number

3360835

Interface codes

J6 / J61

ISO

ZYL22F4000h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4.05 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22F4000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00402215

LPR Protruding length

13 mm

Name Identifying order number

PICCO R 050.1-7N IC908

OAL Overall length

31 mm

Working process

No working processes available
