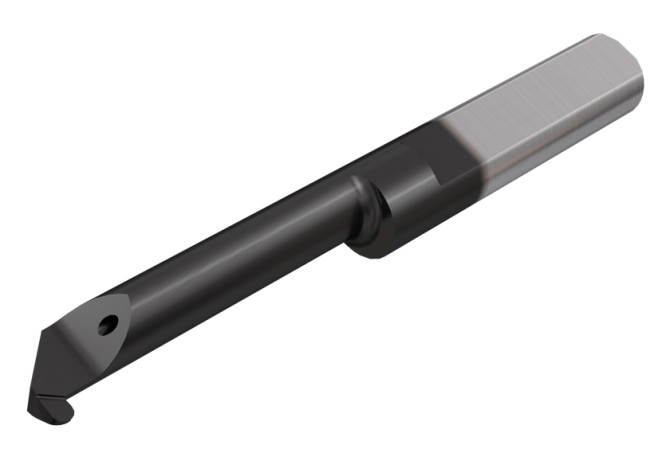

PICCO R 005.0.50-20N IC908

Артикул: 3360754

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DMIN Minimum bore diameter

5 mm

FamilyProducts

Full Radius Inserts with Internal Coolant Channel for Internal Profiling

ID Technical product number

3360754

Interface codes

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

PICCO R 005.0.50-20N IC908

OAL Overall length

41 mm

WF Functional width

1.9 mm

Working process

No working processes available
