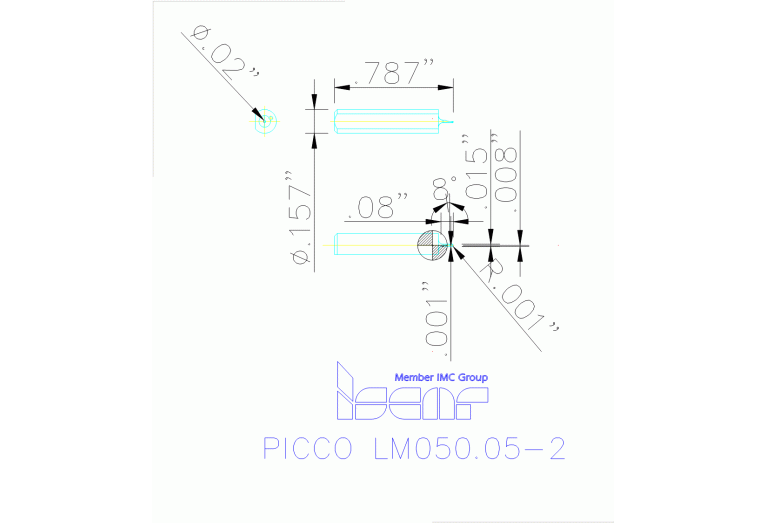

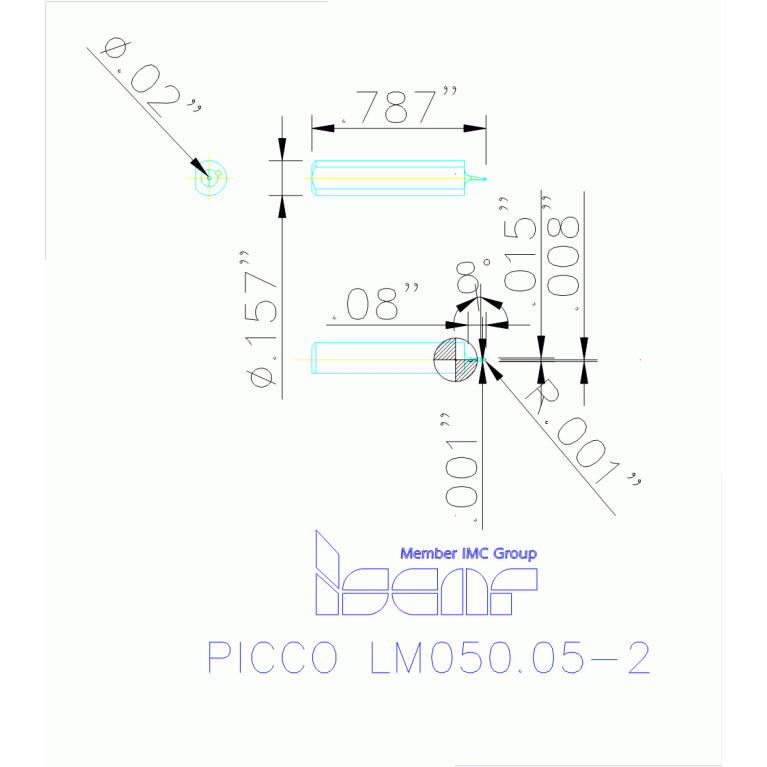

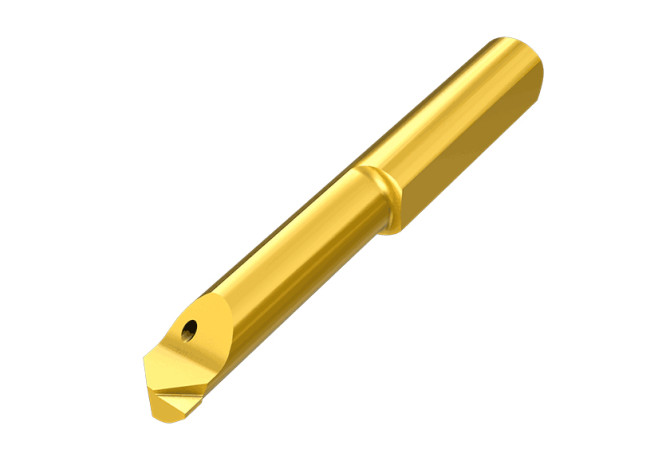

PICCO LM050.05-2 IC909

Артикул: 3309734

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00402215

DMIN Minimum bore diameter

0.5 mm

FamilyProducts

Profiling Inserts with Coolant Channel Optimized for Machining Medical Parts

HAND Cutting direction

L - Left

ID Technical product number

3309734

Interface codes

J6 / J61

ISO

ZYL22F4000h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22F4000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00402215

Name Identifying order number

PICCO LM050.05-2 IC909

OAL Overall length

20 mm

WF Functional width

0.2 mm

Working process

No working processes available

WT Weight of item

0.01 kg
