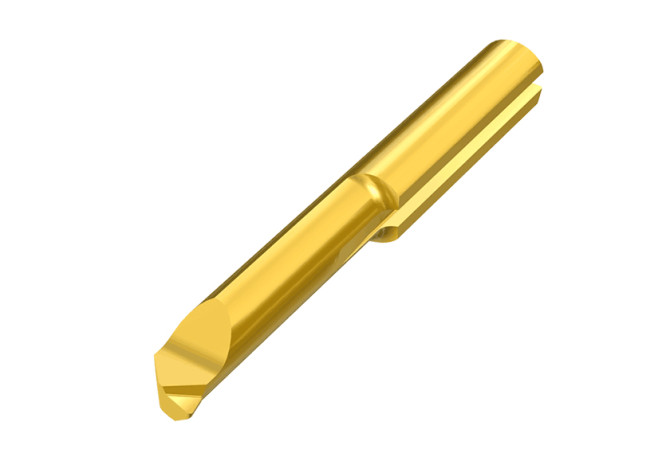

PICCO LHD 050.7-25 IC902

Артикул: 3309731

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

8 - With coolant supply (entry), axial groove at shank

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00702215

DMIN Minimum bore diameter

6.8 mm

EPSR Insert included angle

62 Degree

FamilyProducts

Inserts for Internal Turning and Chamfering of Hard Steel - Up to 65 HRC

HAND Cutting direction

L - Left

ID Technical product number

3309731

Interface codes

J6 / J61

ISO

ZYL22F7000h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

40 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22F7000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702215

Name Identifying order number

PICCO LHD 050.7-25 IC902

OAL Overall length

40 mm

WF Functional width

2.8 mm

Working process

No working processes available

WT Weight of item

0.02 kg
