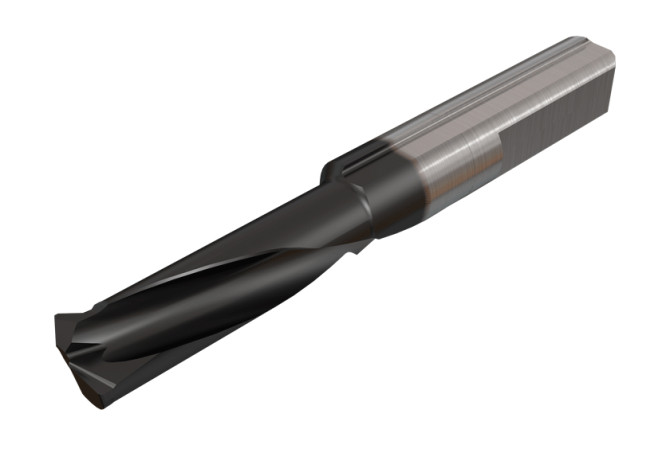

PICCO L-MFT60 8-7 L14 IC908

Артикул: 5530141

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DMIN Minimum bore diameter

7 mm

FamilyProducts

Solid Carbide Tools for Drilling, Facing, Internal and External Turning and Threading on Swiss and Small CNC Machines

HAND Cutting direction

L - Left

ID Technical product number

5530141

Interface codes

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

PICCO L-MFT60 8-7 L14 IC908

OAL Overall length

41 mm

Working process

No working processes available

WT Weight of item

0.02 kg
