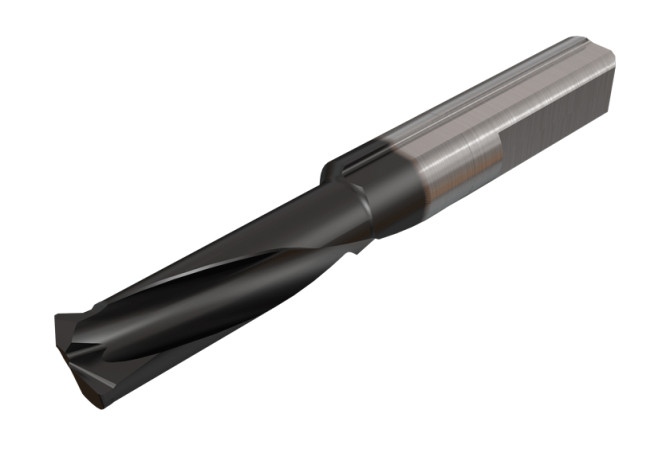

PICCO L-MFT60 6-5 L15 IC908

Артикул: 5530126

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DMIN Minimum bore diameter

5 mm

FamilyProducts

Solid Carbide Tools for Drilling, Facing, Internal and External Turning and Threading on Swiss and Small CNC Machines

HAND Cutting direction

L - Left

ID Technical product number

5530126

Interface codes

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

PICCO L-MFT60 6-5 L15 IC908

OAL Overall length

37 mm

Working process

No working processes available

WT Weight of item

0.01 kg
