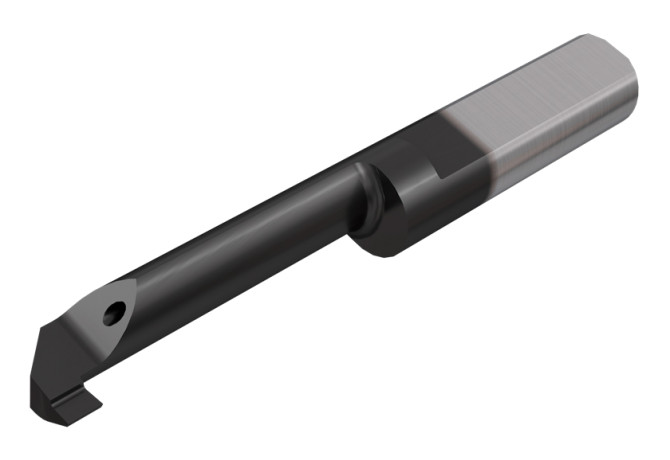

PICCO L 006.0200-22N IC908

Артикул: 3360966

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DMIN Minimum bore diameter

6 mm

FamilyProducts

Inserts with Internal Coolant Channel for Internal Grooving and Turning

HAND Cutting direction

L - Left

ID Technical product number

3360966

Interface codes

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 DCONMS Diameter

6.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

PICCO L 006.0200-22N IC908

OAL Overall length

43 mm

WF Functional width

2.3 mm

Working process

No working processes available
