Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PDJNR 2525M-11-JHP

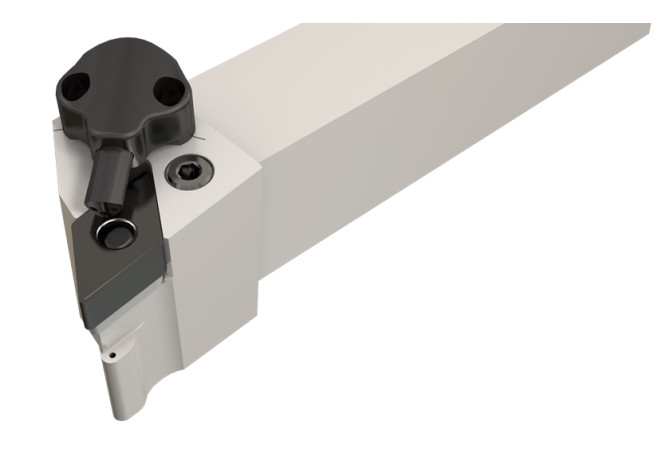

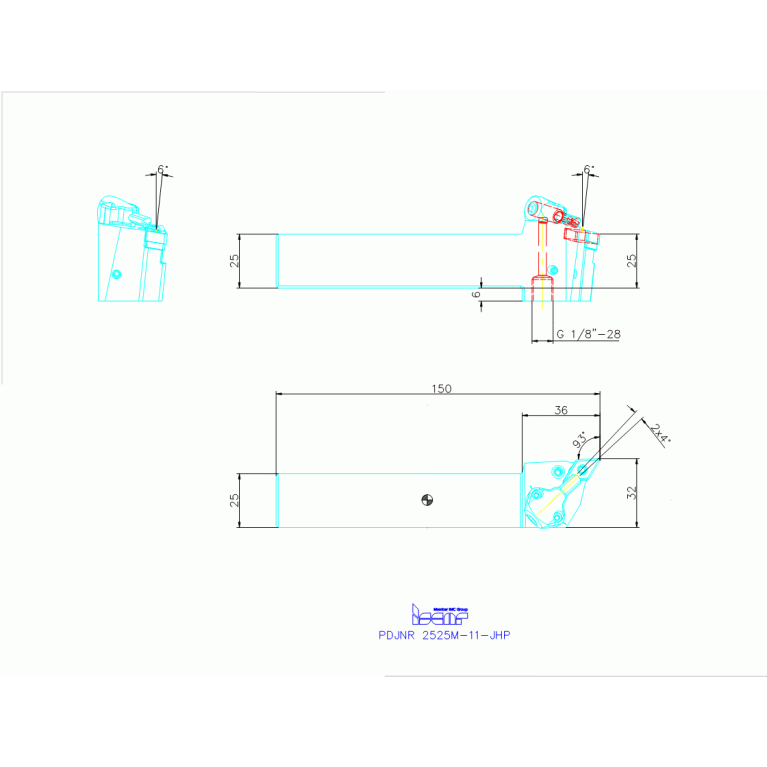

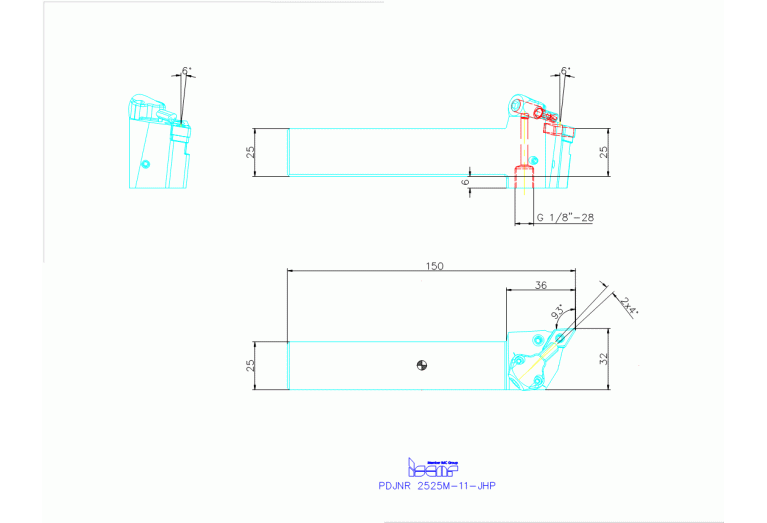

PDJNR 2525M-11-JHP

Артикул: 3603700

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

8 - Axial concentrical or peripheral/decentralized adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT25250115

EPSR Insert included angle

55 Degree

FamilyProducts

Lever Lock Tools with Channels for High-Pressure Coolant Carrying 55° Negative Rhombic Inserts

HAND Cutting direction

R - Right

HF Functional height

25 mm

ID Technical product number

3603700

Interface codes

J6 / J61

ISO

VKT01A2525$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

150 mm

LH Head length

36 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03 ISO

VKT01A2525$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250115

MIID Master insert identification

DNMG 110408-GN

Name Identifying order number

PDJNR 2525M-11-JHP

OAL Overall length

150 mm

WF Functional width

32 mm

Working process

No working processes available

WT Weight of item

0.74 kg
