Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PDJNL 1212F-07S

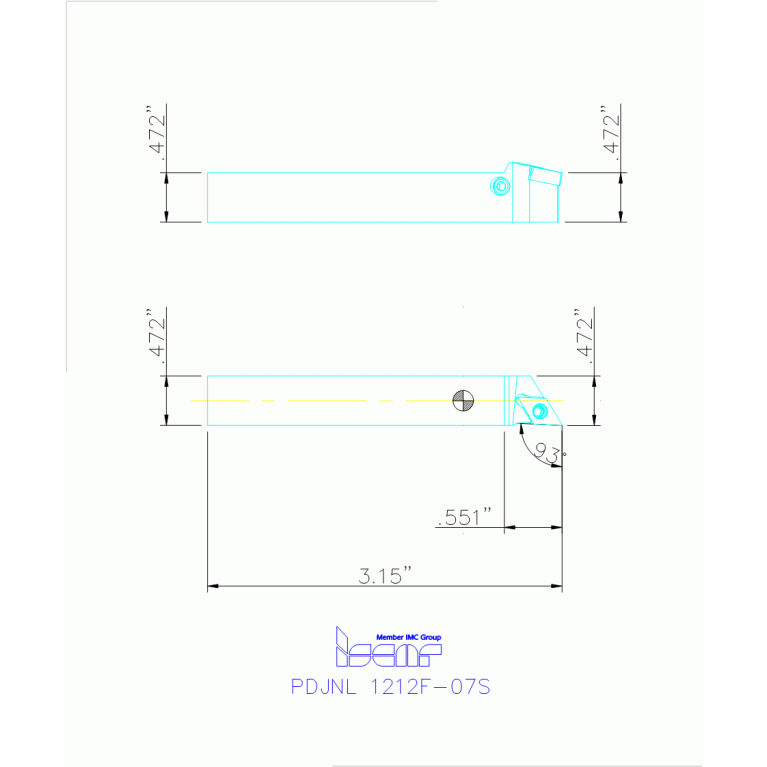

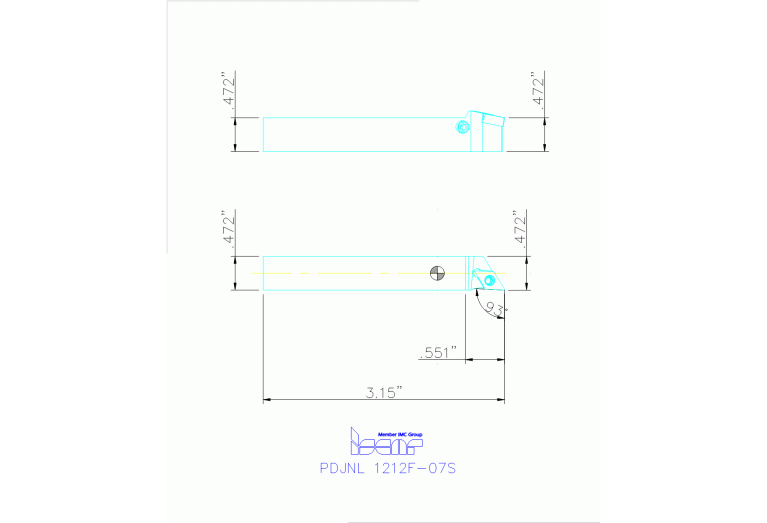

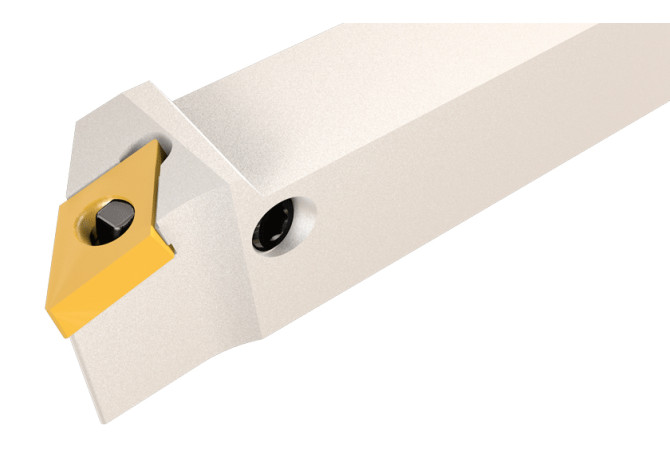

PDJNL 1212F-07S

Артикул: 6712881

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT12120105

DIN CSW1

IS-780400026748007

EPSR Insert included angle

55 Degree

FamilyProducts

Lever Lock Tools Carrying DNGP 0703.. Double-Sided 55° Rhombic Inserts

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

12 mm

ID Technical product number

6712881

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A1212$$$$

ISO CSW1

IS$$780400026748007

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

80 mm

LH Head length

14 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03 ISO

VKT01A1212$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120105

MIID Master insert identification

DNGP 070302R-F2M

Name Identifying order number

PDJNL 1212F-07S

OAL Overall length

80 mm

WF Functional width

12 mm

Working process

No working processes available
