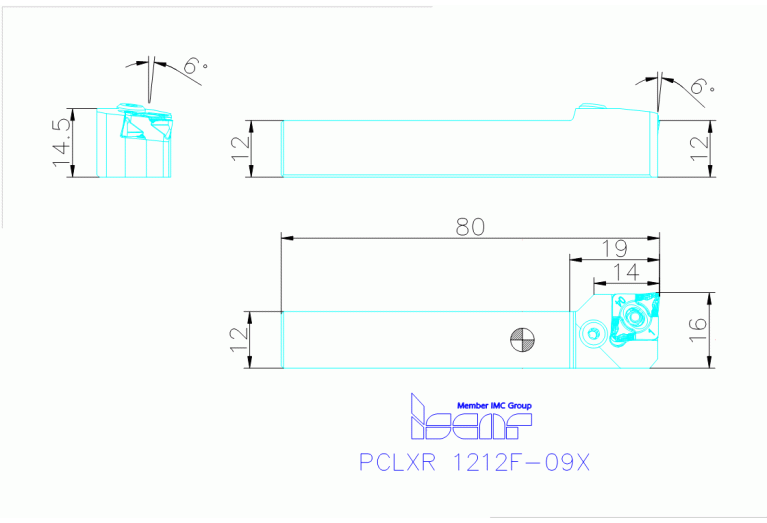

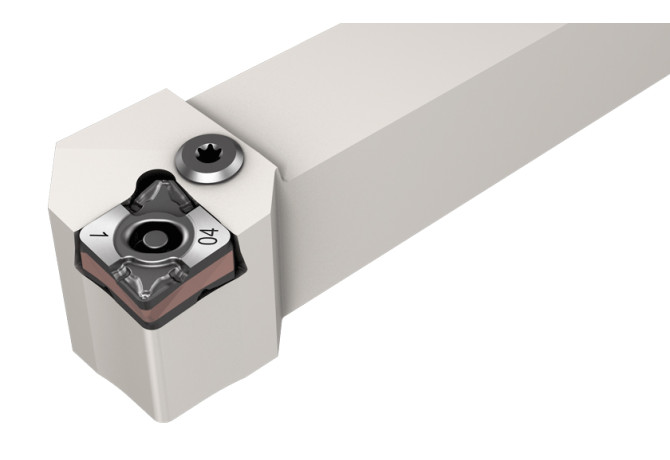

PCLXR 1212F-09X

Артикул: 3345545

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-603953814575252

FamilyProducts

Lever Lock Tools Carrying CXMG 80° Rhombic Inserts

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

6 Degree

HAND Cutting direction

R - Right

HF Functional height

12 mm

ID Technical product number

3345545

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$603953814575252

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

80 mm

LH Head length

19 mm

LOC-03 B Shank width

12 mm

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

CXMG 09...

Name Identifying order number

PCLXR 1212F-09X

OAL Overall length

80 mm

WF Functional width

16 mm

Working process

No working processes available
