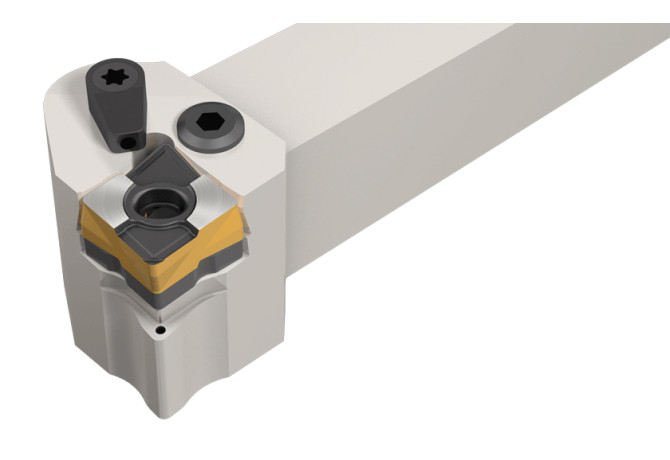

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCLXL 2020X-12X-JHP-MC

PCLXL 2020X-12X-JHP-MC

Артикул: 3360182

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-245430125645904

FamilyProducts

Lever Lock Tools with Channels for High-Pressure Coolant Carrying CXMG 80° Rhombic Inserts

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

6 Degree

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

3360182

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$245430125645904

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

95 mm

LH Head length

25 mm

LOC-03 B Shank width

20 mm

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

CXMG 12...

Name Identifying order number

PCLXL 2020X-12X-JHP-MC

WF Functional width

25 mm

Working process

No working processes available
