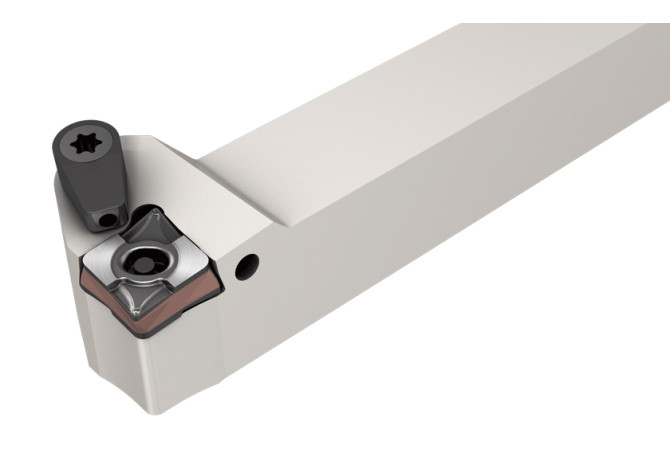

PCLXL 1616K-09XS-JHP

Артикул: 3352093

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

8 - Axial concentrical or peripheral/decentralized adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT16160115

DIN CSW1

IS-603953814575252

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock Tools with JETCUT Coolant System Carrying CXMG 80° Rhombic Inserts for Swiss-Type Automatic Lathes

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

6 Degree

HAND Cutting direction

L - Left

HF Functional height

16 mm

ID Technical product number

3352093

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A1616$$$$

ISO CSW1

IS$$603953814575252

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

125 mm

LH Head length

20 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03 ISO

VKT01A1616$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160115

MIID Master insert identification

CXMG 090402-F3P

Name Identifying order number

PCLXL 1616K-09XS-JHP

OAL Overall length

125 mm

WF Functional width

16.15 mm

Working process

No working processes available
