Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCLNR 2020X-12X-JHP-MC

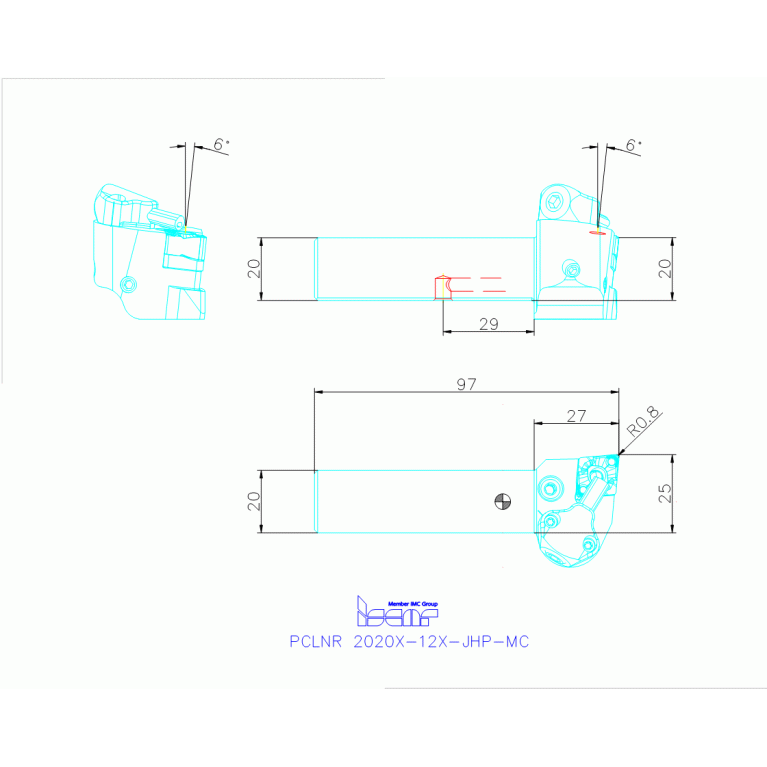

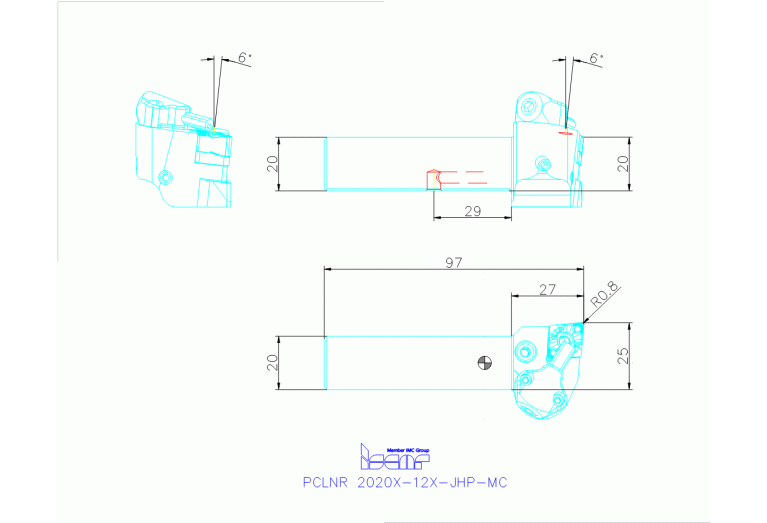

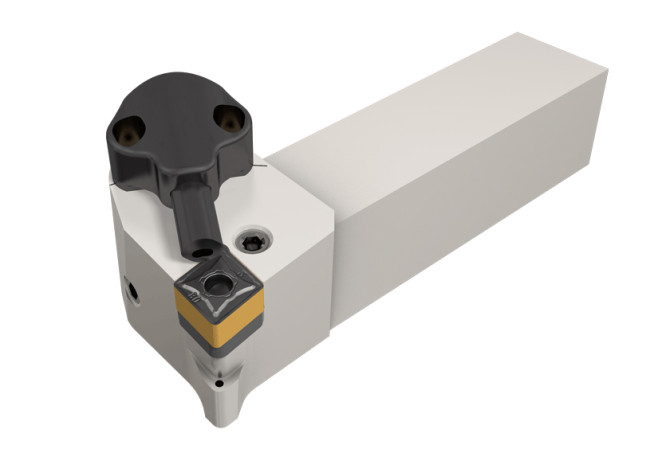

PCLNR 2020X-12X-JHP-MC

Артикул: 3605961

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

8 - Axial concentrical or peripheral/decentralized adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT20200115

DIN CSW1

IS-545224745852776

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock Tools with Bottom Inlets for High-Pressure Coolant Channels Carrying CNMX/CNMG 80° Rhombic Inserts

HAND Cutting direction

R - Right

HF Functional height

20 mm

ID Technical product number

3605961

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A2020$$$$

ISO CSW1

IS$$545224745852776

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

97 mm

LH Head length

27 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200115

MIID Master insert identification

CNMX 120708-M4PW

Name Identifying order number

PCLNR 2020X-12X-JHP-MC

OAL Overall length

97 mm

WF Functional width

25 mm

Working process

No working processes available

WT Weight of item

0.33 kg
