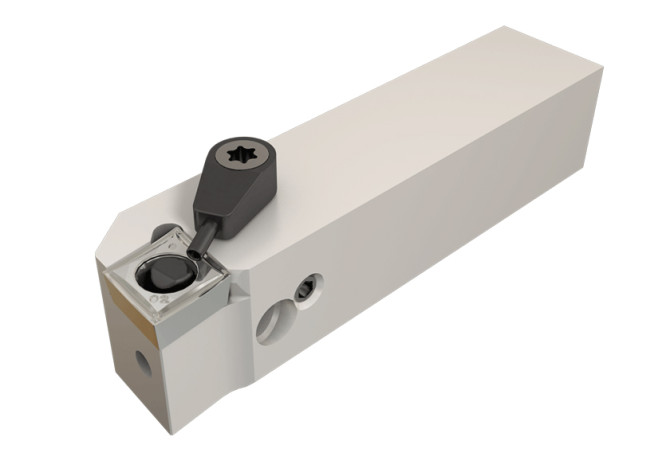

PCLCR 1616X-09S-JHP-MC

Артикул: 3308028

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

8 - Axial concentrical or peripheral/decentralized adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT16160115

EPSR Insert included angle

80 Degree

FamilyProducts

Tools with Channels for High-Pressure Coolant Carrying 80° Positive Rhombic Inserts for Swiss Automatic Machines

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

HF Functional height

16 mm

ID Technical product number

3308028

Interface codes

J6 / J61

ISO

VKT01A1616$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

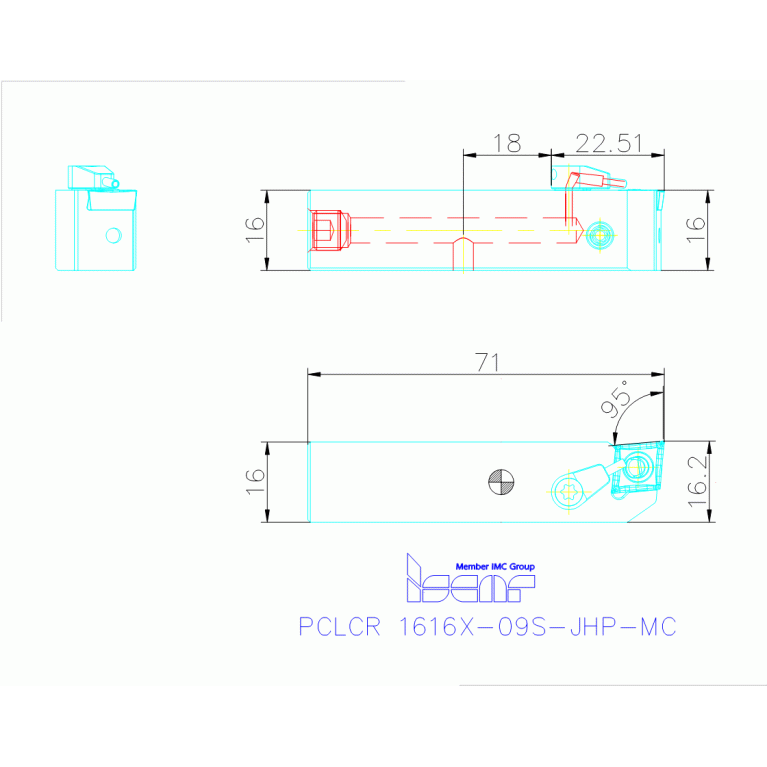

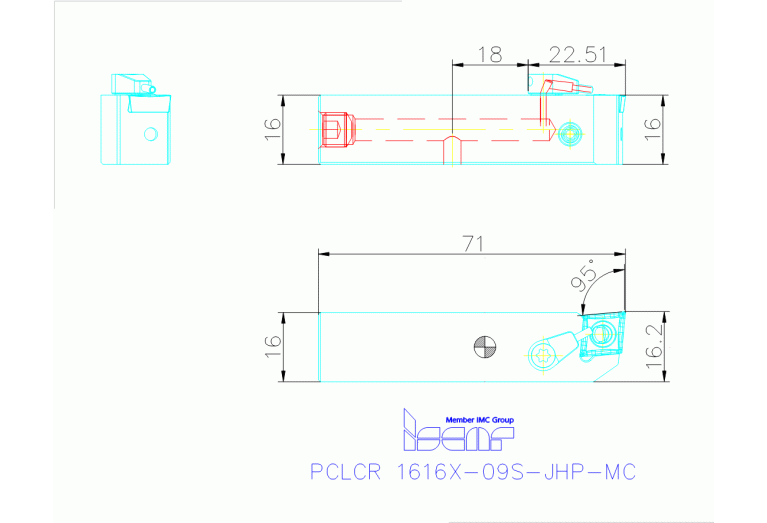

LF Functional length

71 mm

LH Head length

23 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03 ISO

VKT01A1616$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160115

MIID Master insert identification

CCMT 09T302-SM

Name Identifying order number

PCLCR 1616X-09S-JHP-MC

OAL Overall length

71 mm

WF Functional width

16.2 mm

Working process

No working processes available

WT Weight of item

0.13 kg
